RENTAL OF HYDRAULIC EQUIPMENTS
RENTAL POWER UNITS (HPU)

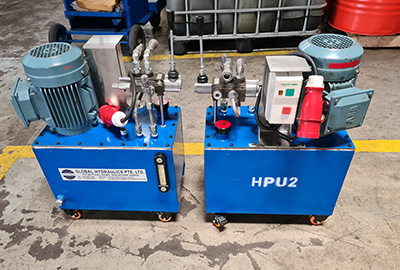

HPU 1 & HPU 2
1.5 HP / 1.1 KW HPU
01.
HPU No: 1.5 HP / 1.1 KW HPU
Electric Motor: 1.5 HP/1.1 KW/ 50 Hz/1400 RPM/220-240V/4.7A – 380-420V/2.72A 1.7HP/1.27KW/60 Hz/1680 RPM/ 440-480V/2.72A
Pump Flow Rate: HPU 1 – 6 LPM @ 1400 RPM & 7 LPM@1680 RPM, HPU 2 – 12 LPM @ 1400 RPM & 14 LPM@1680 RPM
Operating Pressure: HPU 1 – 90 BAR & HPU 2 – 40 BAR
Hydraulic Tank Capacity: 28 Litres
Power Unit Size: 560(L) x 250(W) x 650(H)
Weight Of Power Unit: 50 KG
Quantity: EACH 1 NOS
Electric Motor: 1.5 HP/1.1 KW/ 50 Hz/1400 RPM/220-240V/4.7A – 380-420V/2.72A 1.7HP/1.27KW/60 Hz/1680 RPM/ 440-480V/2.72A
Pump Flow Rate: HPU 1 – 6 LPM @ 1400 RPM & 7 LPM@1680 RPM, HPU 2 – 12 LPM @ 1400 RPM & 14 LPM@1680 RPM
Operating Pressure: HPU 1 – 90 BAR & HPU 2 – 40 BAR
Hydraulic Tank Capacity: 28 Litres
Power Unit Size: 560(L) x 250(W) x 650(H)
Weight Of Power Unit: 50 KG
Quantity: EACH 1 NOS

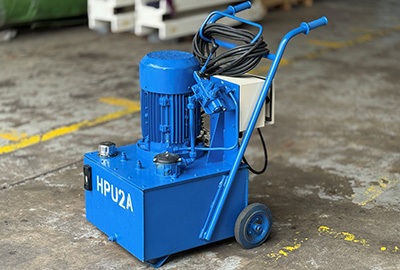

HPU 2A
10 HP / 7.5 KW HPU
02.
HPU No: 10 HP / 7.5 KW HPU
Electric Motor: 10 HP/7.5 KW/ 50 Hz/1440 RPM/ 380-420V/15A-14.2A 10 HP/7.5 KW/ 60 Hz/1730 RPM/ 380-480V/14.5A-13.7A
Pump Flow Rate: 17 LPM @ 1440 RPM & 20 LPM@1730 RPM
Operating Pressure: 210 BAR
Hydraulic Tank Capacity: 58 Litres
Power Unit Size: 1000(L) x 660(W) x 1000(H)
Weight Of Power Unit: 125 KG
Quantity: 1
Electric Motor: 10 HP/7.5 KW/ 50 Hz/1440 RPM/ 380-420V/15A-14.2A 10 HP/7.5 KW/ 60 Hz/1730 RPM/ 380-480V/14.5A-13.7A
Pump Flow Rate: 17 LPM @ 1440 RPM & 20 LPM@1730 RPM
Operating Pressure: 210 BAR
Hydraulic Tank Capacity: 58 Litres
Power Unit Size: 1000(L) x 660(W) x 1000(H)
Weight Of Power Unit: 125 KG
Quantity: 1

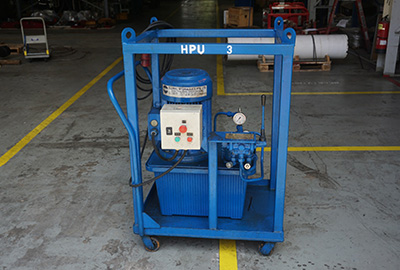

HPU 3
15 HP / 11 KW HPU
03.
HPU No: 15 HP / 11 KW HPU
Electric Motor: 15 HP/11 KW/ 50 Hz/1455 RPM/415V/21.2A
Pump Flow Rate: 35 LPM @ 1455 RPM
Operating Pressure: 200 Bar
Hydraulic Tank Capacity: 58 Litres
Power Unit Size: 1000(L) x 700(W) x 1350(H)
Weight Of Power Unit: 280 KG
Quantity: 1
Electric Motor: 15 HP/11 KW/ 50 Hz/1455 RPM/415V/21.2A
Pump Flow Rate: 35 LPM @ 1455 RPM
Operating Pressure: 200 Bar
Hydraulic Tank Capacity: 58 Litres
Power Unit Size: 1000(L) x 700(W) x 1350(H)
Weight Of Power Unit: 280 KG
Quantity: 1

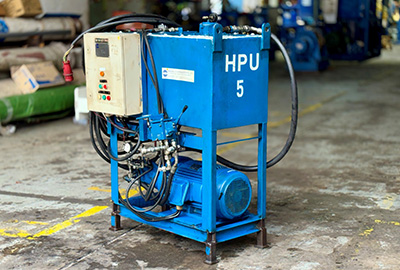

HPU 5
20 HP / 15 KW HPU
04.
HPU No: 20 HP /15 KW HPU
Electric Motor: 20 HP/15 KW/ 50 Hz/1465 RPM/415V/26.7A – 60Hz/1765 RPM/440V/24.5A
Pump Flow Rate: 33LPM /250 BAR@ 1465 RPM & 40LPM /210 BAR@ 1465 RPM, 48LPM /210 BAR@ 1765 RPM,
Operating Pressure: 250 Bar
Hydraulic Tank Capacity: 230 Litres
Power Unit Size: 1000(L) x 700(W) x 1700(H)
Weight Of Power Unit: 500 KG
Quantity: 1
Electric Motor: 20 HP/15 KW/ 50 Hz/1465 RPM/415V/26.7A – 60Hz/1765 RPM/440V/24.5A
Pump Flow Rate: 33LPM /250 BAR@ 1465 RPM & 40LPM /210 BAR@ 1465 RPM, 48LPM /210 BAR@ 1765 RPM,
Operating Pressure: 250 Bar
Hydraulic Tank Capacity: 230 Litres
Power Unit Size: 1000(L) x 700(W) x 1700(H)
Weight Of Power Unit: 500 KG
Quantity: 1
HPU 5A
20 HP / 15 KW HPU
05.
HPU No: 20 HP / 15 KW HPU
Electric Motor: 20 HP/15 KW/ 50 Hz/1460 RPM/400V/29A– 60Hz/1760 RPM/460V/28.5A
Pump Flow Rate: 29 LPM @ 1460 RPM & 35 LPM @ 1760 RPM
Operating Pressure: 210 Bar
Hydraulic Tank Capacity: 240 Litres
Power Unit Size: 1200(L) x 800(W) x 1000(H)
Weight Of Power Unit: 200 KG
Quantity: 1
Electric Motor: 20 HP/15 KW/ 50 Hz/1460 RPM/400V/29A– 60Hz/1760 RPM/460V/28.5A
Pump Flow Rate: 29 LPM @ 1460 RPM & 35 LPM @ 1760 RPM
Operating Pressure: 210 Bar
Hydraulic Tank Capacity: 240 Litres
Power Unit Size: 1200(L) x 800(W) x 1000(H)
Weight Of Power Unit: 200 KG
Quantity: 1

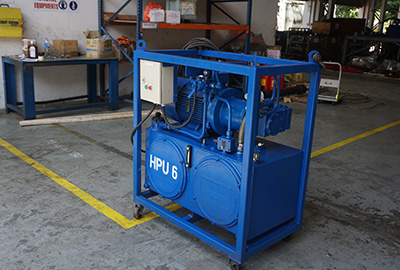

HPU 6
25 HP / 18.5 KW HPU
06.
HPU No: 25 HP / 18.5 KW HPU
Electric Motor: 25 HP/18.5 KW/ 50 Hz/1470 RPM/420V/34.3A – 60Hz/1760 RPM/440V/34.3A
Pump Flow Rate: 22 LPM @ 1470 RPM
Operating Pressure: 450 BAR
Hydraulic Tank Capacity: 240 Litres
Power Unit Size: 1150(L) x 700(W) x 1450(H)
Weight Of Power Unit: 600 KG
Quantity: 1
Electric Motor: 25 HP/18.5 KW/ 50 Hz/1470 RPM/420V/34.3A – 60Hz/1760 RPM/440V/34.3A
Pump Flow Rate: 22 LPM @ 1470 RPM
Operating Pressure: 450 BAR
Hydraulic Tank Capacity: 240 Litres
Power Unit Size: 1150(L) x 700(W) x 1450(H)
Weight Of Power Unit: 600 KG
Quantity: 1

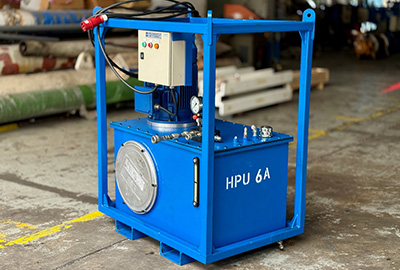

HPU 6A
20 HP /15 KW HPU
07.
HPU No: 20 HP /15 KW HPU
Electric Motor: 20 HP/15 KW/ 50 Hz/1472 RPM/415V/26.35A, 24HP/18KW/ 60Hz/1766 RPM/440V/26.5A
Pump Flow Rate: 13.5 LPM @ 1472 RPM & 16 LPM @ 1766 RPM
Operating Pressure: 630 BAR
Hydraulic Tank Capacity: 300 Litres
Power Unit Size: 1150(L) x 800(W) x 1500(H)
Weight Of Power Unit: 550 KG
Quantity: 1
Electric Motor: 20 HP/15 KW/ 50 Hz/1472 RPM/415V/26.35A, 24HP/18KW/ 60Hz/1766 RPM/440V/26.5A
Pump Flow Rate: 13.5 LPM @ 1472 RPM & 16 LPM @ 1766 RPM
Operating Pressure: 630 BAR
Hydraulic Tank Capacity: 300 Litres
Power Unit Size: 1150(L) x 800(W) x 1500(H)
Weight Of Power Unit: 550 KG
Quantity: 1

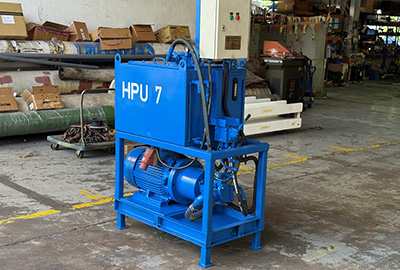

HPU 7
30 HP /22 KW HPU
08.
HPU No: 30 HP /22 KW HPU
Electric Motor: 30 HP/22 KW/ 50 Hz/1460 RPM/380V/42A – 415V/40A
Pump Flow Rate: 40 LPM @ 1460 RPM
Operating Pressure: 280 BAR
Hydraulic Tank Capacity: 244 Litres
Power Unit Size: 1250(L) x 650(W) x 1700(H)
Weight Of Power Unit: 520 KG
Quantity: 1
Electric Motor: 30 HP/22 KW/ 50 Hz/1460 RPM/380V/42A – 415V/40A
Pump Flow Rate: 40 LPM @ 1460 RPM
Operating Pressure: 280 BAR
Hydraulic Tank Capacity: 244 Litres
Power Unit Size: 1250(L) x 650(W) x 1700(H)
Weight Of Power Unit: 520 KG
Quantity: 1

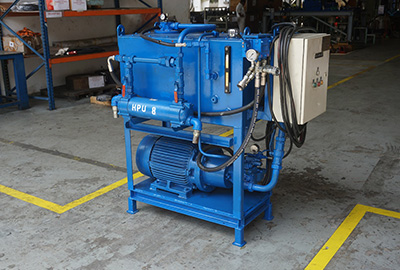

HPU 8
30 HP / 22 KW HPU
09.
HPU No: 30 HP / 22 KW HPU
Electric Motor: 30 HP/22 KW/ 60 Hz/1752 RPM/480V/33.3A
Pump Flow Rate: 50 LPM / 250 BAR (OR) 55 LPM / 210 BAR @ 1752 RPM
Operating Pressure: 250 BAR
Hydraulic Tank Capacity: 230 LITRES
Power Unit Size: 1360(L) x 700(W) x 1450(H)
Weight Of Power Unit: 520 KG
Quantity: WATER COOLER 1
Electric Motor: 30 HP/22 KW/ 60 Hz/1752 RPM/480V/33.3A
Pump Flow Rate: 50 LPM / 250 BAR (OR) 55 LPM / 210 BAR @ 1752 RPM
Operating Pressure: 250 BAR
Hydraulic Tank Capacity: 230 LITRES
Power Unit Size: 1360(L) x 700(W) x 1450(H)
Weight Of Power Unit: 520 KG
Quantity: WATER COOLER 1

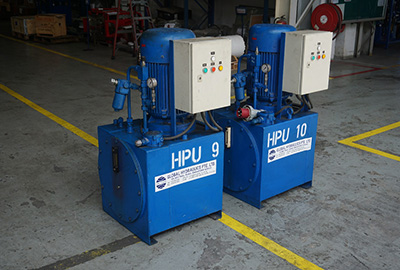

HPU 9 & HPU 10
30 HP /22 KW HPU
10.
HPU No: 30 HP / 22 KW HPU
Electric Motor: 30 HP/22 KW/ 60 Hz/1764 RPM/440V/30A
Pump Flow Rate: 40 LPM @ 1764 RPM
Operating Pressure: 200 BAR
Hydraulic Tank Capacity: 200 LITRES
Power Unit Size: 600(L) x 600(W) x 1300(H)
Weight Of Power Unit: 320 KG
Quantity: 2
Electric Motor: 30 HP/22 KW/ 60 Hz/1764 RPM/440V/30A
Pump Flow Rate: 40 LPM @ 1764 RPM
Operating Pressure: 200 BAR
Hydraulic Tank Capacity: 200 LITRES
Power Unit Size: 600(L) x 600(W) x 1300(H)
Weight Of Power Unit: 320 KG
Quantity: 2

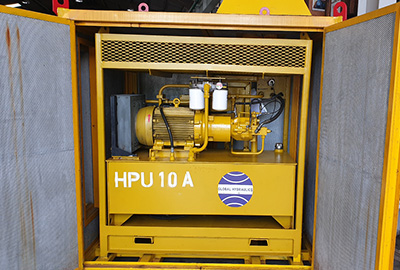

HPU 10A
30 HP /22 KW HPU
10.
HPU No: 30 HP / 22 KW HPU
Electric Motor: 30 HP/22 KW/ 60 Hz/1755 RPM/230V/68.8A – 460V/34.4A
Pump Flow Rate: 55 LPM / 250 BAR (OR) 95 LPM / 210 BAR @ 1755 RPM
Operating Pressure: 250 BAR
Hydraulic Tank Capacity: 380 LITRES
Power Unit Size: 2000(L) x 1500(W) x 2500(H)
Weight Of Power Unit: 1850 KG
Cooler : AIR COOLER
Quantity: 1
Electric Motor: 30 HP/22 KW/ 60 Hz/1755 RPM/230V/68.8A – 460V/34.4A
Pump Flow Rate: 55 LPM / 250 BAR (OR) 95 LPM / 210 BAR @ 1755 RPM
Operating Pressure: 250 BAR
Hydraulic Tank Capacity: 380 LITRES
Power Unit Size: 2000(L) x 1500(W) x 2500(H)
Weight Of Power Unit: 1850 KG
Cooler : AIR COOLER
Quantity: 1

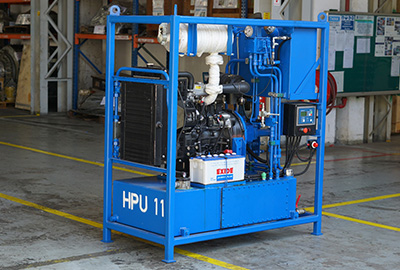

HPU 11
DIESEL ENGINE DRIVEN HPU
11.
HPU No: 30 HP / 22 KW HPU
Diesel Enigne: 30HP / 24 KW / 1875rpm
Pump Flow Rate: 50 LPM @ 1875RPM
Operating Pressure: 250 BAR
Hydraulic Tank Capacity: 230 LITRES
Diesel Tank: 60 litres
Weight Of Power Unit: 850 KG
HPU SIZE: 1600(L) X 800 (W) X 1800 (H)
Cooler: AIR COOLER
Quantity: 1
Diesel Enigne: 30HP / 24 KW / 1875rpm
Pump Flow Rate: 50 LPM @ 1875RPM
Operating Pressure: 250 BAR
Hydraulic Tank Capacity: 230 LITRES
Diesel Tank: 60 litres
Weight Of Power Unit: 850 KG
HPU SIZE: 1600(L) X 800 (W) X 1800 (H)
Cooler: AIR COOLER
Quantity: 1
16A – 75 KW / 100 HP
11.
HPU No: 16A – 75 KW / 100 HP
Electric Motor: 50 HZ / 1480 Rpm / 230V / 228A & 460V / 114A
60 HZ / 1760 Rpm / 190V / 270A & 380V / 135A
Pump Flow Rate: 250 LPM @ 100 Bar
160 LPM @ 200 Bar
105 LPM @ 300 Bar
75 LPM @ 350 Bar
Operating Pressure: 350 Bar
Hydraulic Tank Capacity: 1000 Litres
Power Unit Size: 2500(L) x 2000(W) x 2500(H)
Weight Of Power Unit: 3200KG
Quantity: 1

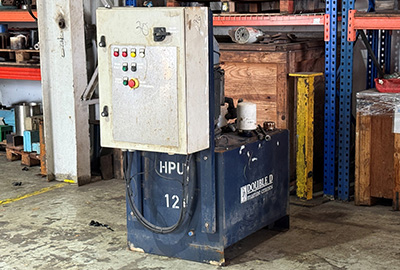

HPU 12
40 HP /30 KW HPU
12.
HPU No: 40 HP /30 KW HPU
Electric Motor: 40HP/30KW/50 Hz/1460RPM/400V/56.5A – 48HP/36KW/60 Hz/1750RPM/480V/56.5A
Pump Flow Rate: 50 LPM @ 1460 RPM
Operating Pressure: 240 BAR
Hydraulic Tank Capacity: 250 LITRES
Power Unit Size: 910(L) x 710(W) x 1530(H)
Weight Of Power Unit: 520 KG
Quantity: 1
Electric Motor: 40HP/30KW/50 Hz/1460RPM/400V/56.5A – 48HP/36KW/60 Hz/1750RPM/480V/56.5A
Pump Flow Rate: 50 LPM @ 1460 RPM
Operating Pressure: 240 BAR
Hydraulic Tank Capacity: 250 LITRES
Power Unit Size: 910(L) x 710(W) x 1530(H)
Weight Of Power Unit: 520 KG
Quantity: 1
HPU 14
40 HP /30 KW HPU
13.
HPU No: 40 HP /30 KW HPU
Electric Motor: 40HP / 30KW / 50HZ / 1474RPM / 400V/54.9A – 60HZ/1769 RPM/440V/49.2A
Pump Flow Rate: 50 LPM @ 1474RPM – 60LPM @1769 RPM
Operating Pressure: 350 BAR
Hydraulic Tank Capacity: 280 LITRES
Hydraulic Tank Size: 1450(L) x 1030(W) x 1380(H)
Power Unit Size: 1450(L) x 1030(W) x 1380(H)
Weight Of Power Unit: 850 KG
Cooler: AIR COOLER
Quantity: 1
Electric Motor: 40HP / 30KW / 50HZ / 1474RPM / 400V/54.9A – 60HZ/1769 RPM/440V/49.2A
Pump Flow Rate: 50 LPM @ 1474RPM – 60LPM @1769 RPM
Operating Pressure: 350 BAR
Hydraulic Tank Capacity: 280 LITRES
Hydraulic Tank Size: 1450(L) x 1030(W) x 1380(H)
Power Unit Size: 1450(L) x 1030(W) x 1380(H)
Weight Of Power Unit: 850 KG
Cooler: AIR COOLER
Quantity: 1

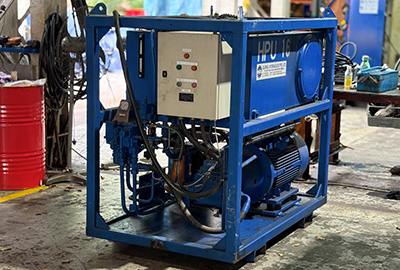

HPU 16
60 HP /45 KW HPU
14.
HPU No: 60 HP /45 KW HPU
Electric Motor: 60 HP/45 KW/ 50 Hz/1460 RPM/415V/78A – 60HZ/1750RPM/440V/78A
Pump Flow Rate: 75 LPM/350 BAR(OR)100 LPM / 280 BAR @ 1460 RPM – 120LPM@280BAR
Operating Pressure: 350 BAR
Hydraulic Tank Capacity: 600 LITRES
Power Unit Size: 1670(L) x 1070(W) x 1580(H)
Weight Of Power Unit: 950 KG
Cooler: AIR COOLER
Quantity: 1
Electric Motor: 60 HP/45 KW/ 50 Hz/1460 RPM/415V/78A – 60HZ/1750RPM/440V/78A
Pump Flow Rate: 75 LPM/350 BAR(OR)100 LPM / 280 BAR @ 1460 RPM – 120LPM@280BAR
Operating Pressure: 350 BAR
Hydraulic Tank Capacity: 600 LITRES
Power Unit Size: 1670(L) x 1070(W) x 1580(H)
Weight Of Power Unit: 950 KG
Cooler: AIR COOLER
Quantity: 1
HPU 16A
DIESEL ENGINE DRIVEN HPU
15.
HPU No: DIESEL ENGINE DRIVEN HPU
Diesel Engine: 115HP / 86 KW / 1800rpm
Pump Flow Rate: 131 LPM / 200BAR (OR) 90LPM / 320 BAR @ 1875RPM
Operating Pressure: 320 BAR
Hydraulic Tank Capacity: 430 LITRES
Diesel Tank: 200 Litres
Weight Of Power Unit: 1800 KG
HPU SIZE: 2950(L) X 1000 (W) X 1880 (H)
Cooler: AIR COOLER
Quantity: 1
Diesel Engine: 115HP / 86 KW / 1800rpm
Pump Flow Rate: 131 LPM / 200BAR (OR) 90LPM / 320 BAR @ 1875RPM
Operating Pressure: 320 BAR
Hydraulic Tank Capacity: 430 LITRES
Diesel Tank: 200 Litres
Weight Of Power Unit: 1800 KG
HPU SIZE: 2950(L) X 1000 (W) X 1880 (H)
Cooler: AIR COOLER
Quantity: 1

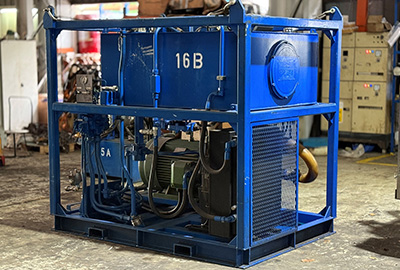

HPU 16B
100 HP /75 KW HPU
16.
HPU No: 100 HP /75 KW HPU
Electric Motor: 100 HP/75 KW/ 50 Hz/1491 RPM/415V/126A – 60HZ/1780RPM/440V/119A
Pump Flow Rate: 135LPM @ 1491 RPM – 169 LPM @ 1780 RPM
Operating Pressure: 350 BAR
Hydraulic Tank Capacity: 1000 LITRES
Power Unit Size: 2150(L) x 1500(W) x 2100(H)
Weight Of Power Unit: 2250 KG
Cooler: AIR COOLER
Quantity: 1
Electric Motor: 100 HP/75 KW/ 50 Hz/1491 RPM/415V/126A – 60HZ/1780RPM/440V/119A
Pump Flow Rate: 135LPM @ 1491 RPM – 169 LPM @ 1780 RPM
Operating Pressure: 350 BAR
Hydraulic Tank Capacity: 1000 LITRES
Power Unit Size: 2150(L) x 1500(W) x 2100(H)
Weight Of Power Unit: 2250 KG
Cooler: AIR COOLER
Quantity: 1

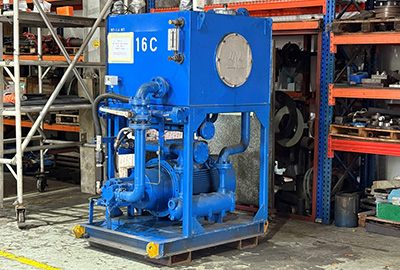

16C & 16D
100 HP /75 KW HPU
17.
HPU No: 100 HP /75 KW HPU
Electric Motor 100 HP / 75 KW / 50 Hz/ 1485RPM / 415V / 136A, 115HP / 86 KW / 60HZ / 1785RPM / 440V / 132A
Pump Flow Rate: 191 LPM @ 1485 RPM – 230 LPM @ 1785 RPM
Operating Pressure: 250 BAR
Hydraulic Tank Capacity: 950 LITRES
Power Unit Size 1600(L) x 1200(W) x 2250(H)
Weight Of Power Unit:1400 KG
Cooler: WATER COOLER
Quantity: 2
Electric Motor 100 HP / 75 KW / 50 Hz/ 1485RPM / 415V / 136A, 115HP / 86 KW / 60HZ / 1785RPM / 440V / 132A
Pump Flow Rate: 191 LPM @ 1485 RPM – 230 LPM @ 1785 RPM
Operating Pressure: 250 BAR
Hydraulic Tank Capacity: 950 LITRES
Power Unit Size 1600(L) x 1200(W) x 2250(H)
Weight Of Power Unit:1400 KG
Cooler: WATER COOLER
Quantity: 2

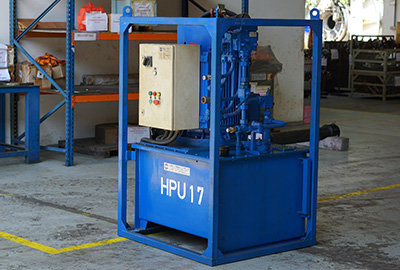

HPU 17
120 HP /90 KW HPU
18.
HPU No: 120 HP /90 KW HPU
Electric Motor: 120HP / 90KW/50HZ / 1480RPM/415V / 153A – 60 Hz / 1785RPM / 440V /1 40A
Pump Flow Rate: 154 LPM @ 1480 RPM – 187 LPM @ 1785 RPM
Operating Pressure: 250 BAR
Hydraulic Tank Capacity: 400 LITRES
Power Unit Size: 1100(L) x 1000(W) x 1750(H)
Weight Of Power Unit: 1200 KG
Quantity: 1
Electric Motor: 120HP / 90KW/50HZ / 1480RPM/415V / 153A – 60 Hz / 1785RPM / 440V /1 40A
Pump Flow Rate: 154 LPM @ 1480 RPM – 187 LPM @ 1785 RPM
Operating Pressure: 250 BAR
Hydraulic Tank Capacity: 400 LITRES
Power Unit Size: 1100(L) x 1000(W) x 1750(H)
Weight Of Power Unit: 1200 KG
Quantity: 1
HPU 18
125 HP / 90KW HPU
19.
HPU No: 215 HP / 160 KW HPU X 2 NOS
Electric Motor: 125HP / 90KW / 50HZ / 1500RPM / 415V / 151A – 60 HZ / 1800RPM / 440V / 142.5A
Pump Flow Rate: 196 LPM @ 1500 RPM – 228 LPM @1800 RPM – IN 250 BAR 480 LPM @ 1500 RPM – 576 LPM @1800 RPM – IN 80 BAR
Operating Pressure: 250 BAR (OR) 80 BAR (FLUSHING)
Hydraulic Tank Capacity: 1500 LITRES
Power Unit Size 2000(L) x 1350(W) x 2175(H)
Weight Of Power Unit: 2500 KG
Cooler: AIR COOLER
Quantity: 1
Electric Motor: 125HP / 90KW / 50HZ / 1500RPM / 415V / 151A – 60 HZ / 1800RPM / 440V / 142.5A
Pump Flow Rate: 196 LPM @ 1500 RPM – 228 LPM @1800 RPM – IN 250 BAR 480 LPM @ 1500 RPM – 576 LPM @1800 RPM – IN 80 BAR
Operating Pressure: 250 BAR (OR) 80 BAR (FLUSHING)
Hydraulic Tank Capacity: 1500 LITRES
Power Unit Size 2000(L) x 1350(W) x 2175(H)
Weight Of Power Unit: 2500 KG
Cooler: AIR COOLER
Quantity: 1
HPU 19
150 HP /111 KW HPU
20.
HPU No: 150 HP /111 KW HPU
Electric Motor: 150HP/111KW/60HZ/1780RPM/460V/175A
Pump Flow Rate: 185 LPM / 350BAR (OR) 230 LPM / 300BAR @ 1780 RPM
Operating Pressure: 350 BAR
Hydraulic Tank Capacity: 1200 LITRES
Power Unit Size: 2100(L) x 1300(W) x 2000(H)
Weight Of Power Unit: 2500 KG
Quantity: 1
Electric Motor: 150HP/111KW/60HZ/1780RPM/460V/175A
Pump Flow Rate: 185 LPM / 350BAR (OR) 230 LPM / 300BAR @ 1780 RPM
Operating Pressure: 350 BAR
Hydraulic Tank Capacity: 1200 LITRES
Power Unit Size: 2100(L) x 1300(W) x 2000(H)
Weight Of Power Unit: 2500 KG
Quantity: 1

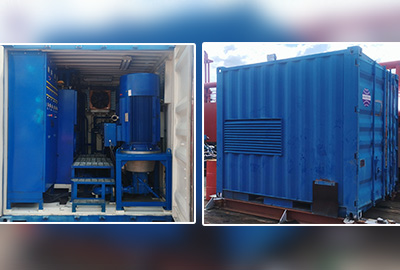

HPU 20
215 HP / 160 KW HPU X 2 NOS
21.
HPU No: 215 HP / 160 KW HPU X 2 NOS
Electric Motor: 2 X 215HP /160 KW / 50HZ/1450RPM / 380-415 V / 288 – 264 A, 60HZ /1800RPM / 440 – 480 V / 249 – 228 A
Pump Flow Rate: 350LPM(P1) + 350PLM(P2)
Operating Pressure: 400 BAR
Hydraulic Tank Capacity: 2500 LITRES
Power Unit Size: 2990(L) x 2430(W) x 2900(H)
Weight Of Power Unit: 6500 KG
Cooler: 2 x AIR COOLER
Quantity: 1
Electric Motor: 2 X 215HP /160 KW / 50HZ/1450RPM / 380-415 V / 288 – 264 A, 60HZ /1800RPM / 440 – 480 V / 249 – 228 A
Pump Flow Rate: 350LPM(P1) + 350PLM(P2)
Operating Pressure: 400 BAR
Hydraulic Tank Capacity: 2500 LITRES
Power Unit Size: 2990(L) x 2430(W) x 2900(H)
Weight Of Power Unit: 6500 KG
Cooler: 2 x AIR COOLER
Quantity: 1
