RENTAL OF HYDRAULIC EQUIPMENTS

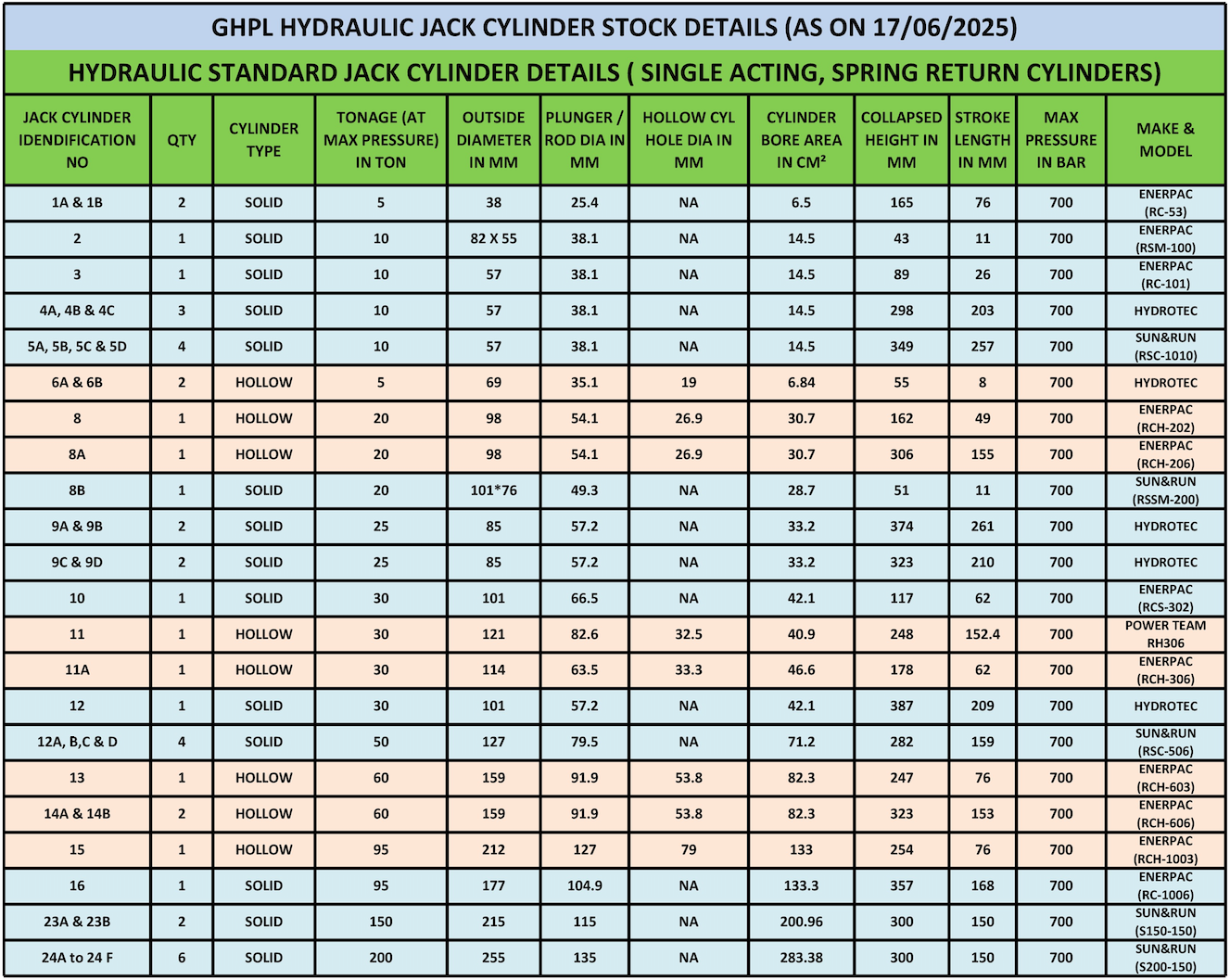

Hydraulic Standard Jack Cylinder Details
(Single Acting, Spring Return Cylinders)

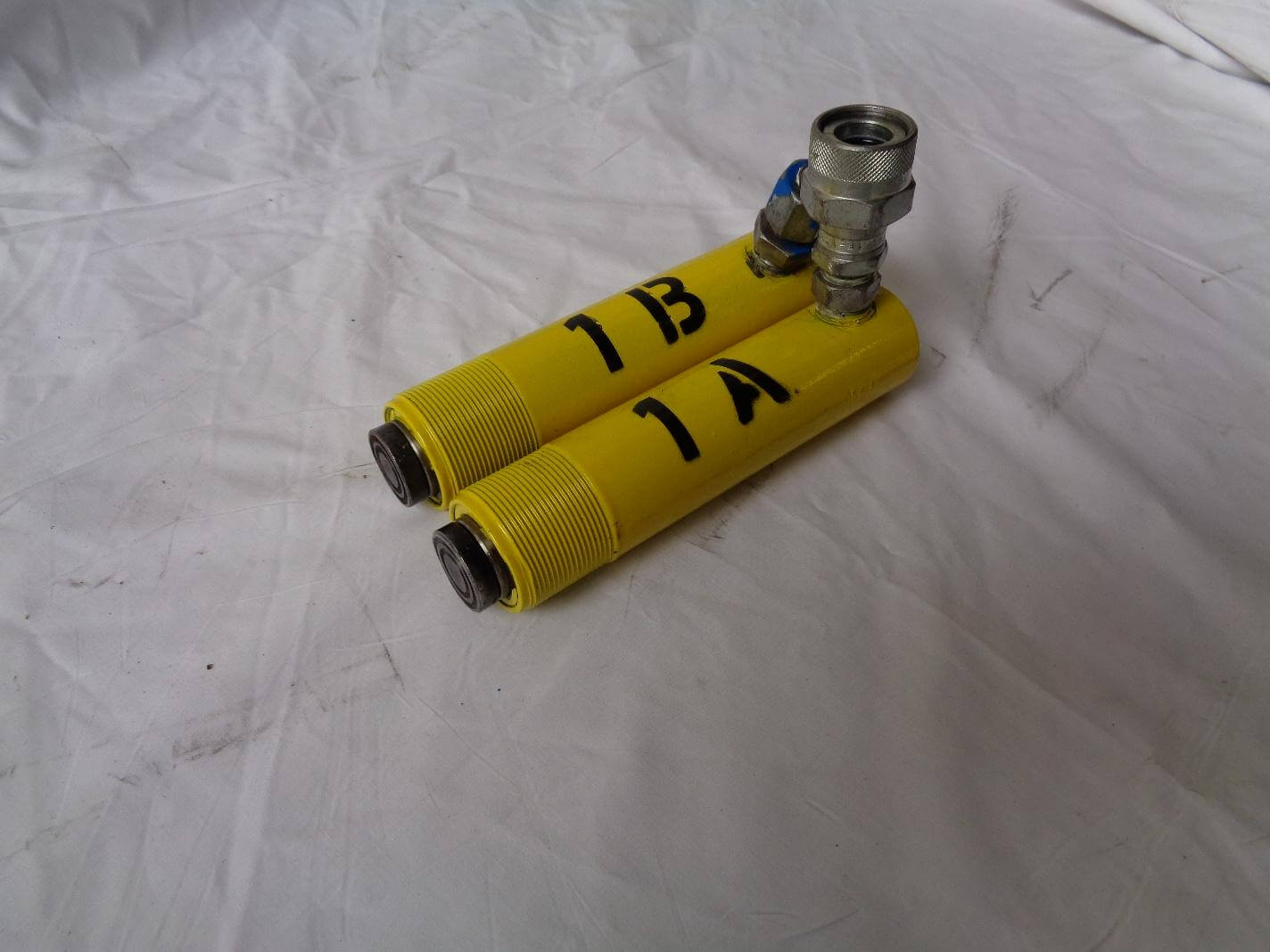

#1A & 1B
Qty: 2
Cylinder Type: Solid
Tonnage: 5 Ton
Outside Diameter: 38 mm
Cylinder Type: Solid
Tonnage: 5 Ton
Outside Diameter: 38 mm
Plunger/Rod Diameter: 25.4 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 6.5 cm²
Collapsed Height: 165 mm
Stroke Length: 76 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RC-53)
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 6.5 cm²
Collapsed Height: 165 mm
Stroke Length: 76 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RC-53)

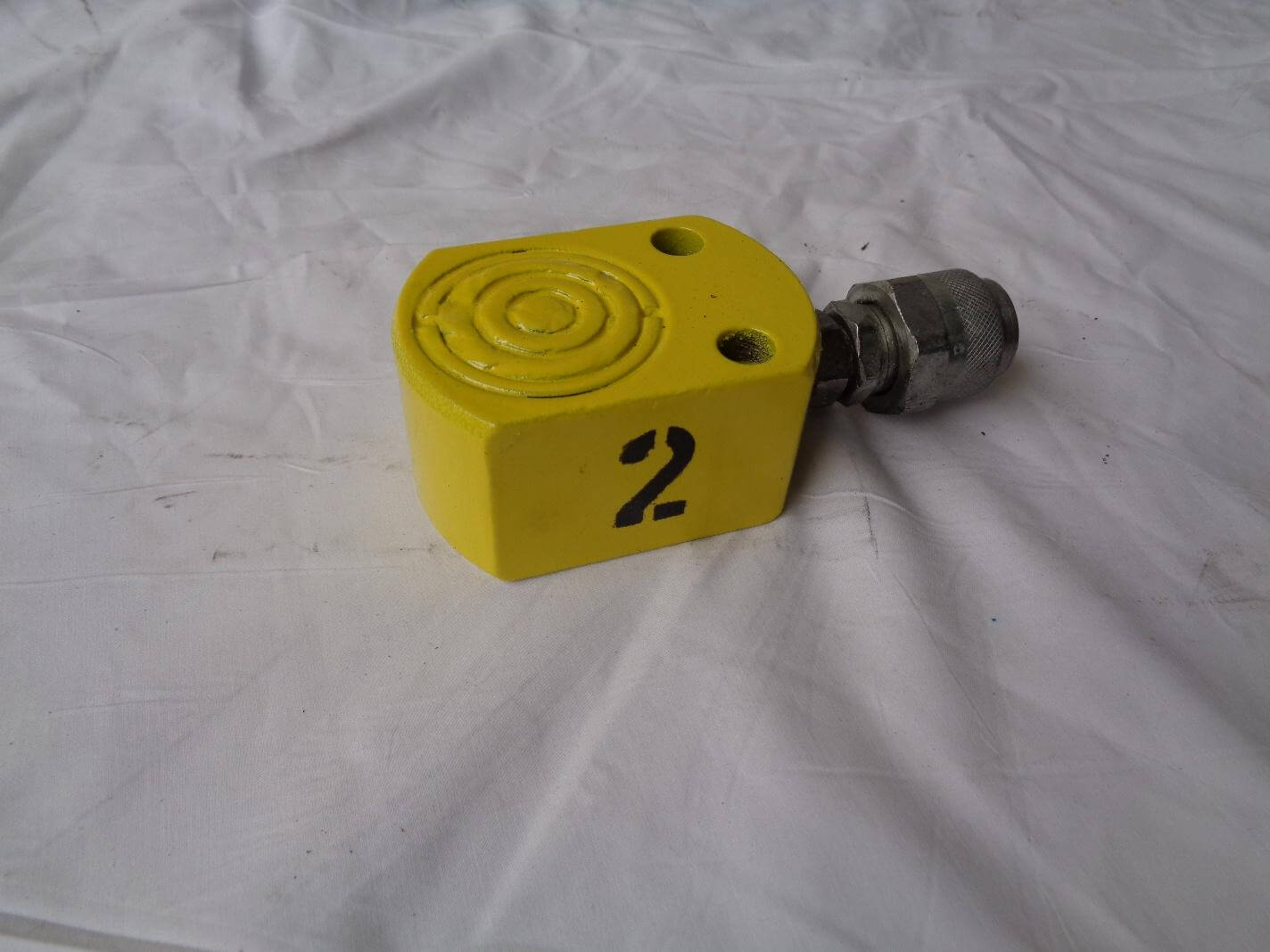

#2
Qty: 1
Cylinder Type: Solid
Tonnage: 10 Ton
Outside Diameter: 82 x 55 mm
Cylinder Type: Solid
Tonnage: 10 Ton
Outside Diameter: 82 x 55 mm
Plunger/Rod Diameter: 38.1 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 14.5 cm²
Collapsed Height: 43 mm
Stroke Length: 11 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RSM-100)
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 14.5 cm²
Collapsed Height: 43 mm
Stroke Length: 11 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RSM-100)

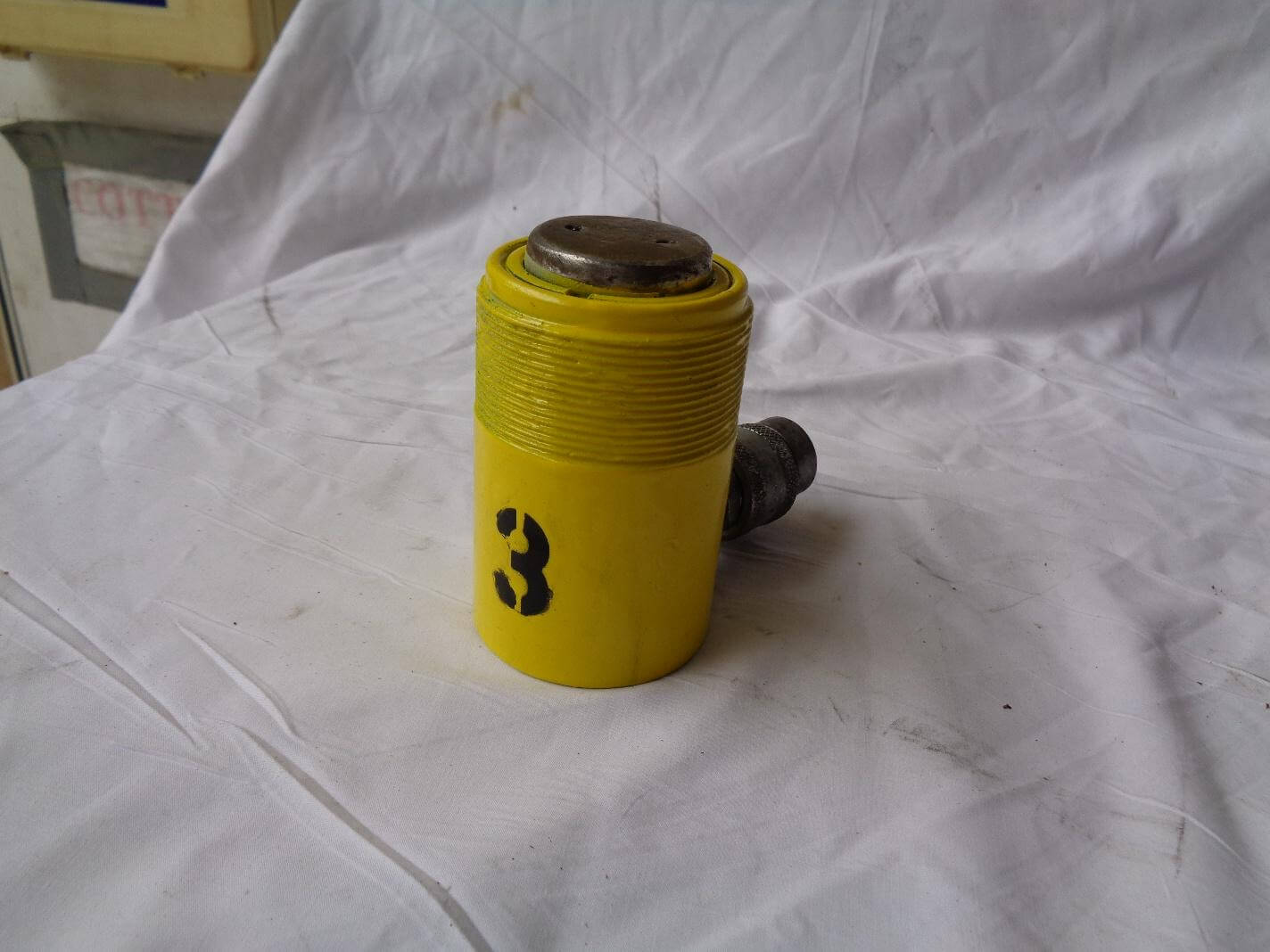

#3
Qty: 3
Cylinder Type: Solid
Tonnage: 10 Ton
Outside Diameter: 57 mm
Cylinder Type: Solid
Tonnage: 10 Ton
Outside Diameter: 57 mm
Plunger/Rod Diameter: 38.1 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 14.5 cm²
Collapsed Height: 89 mm
Stroke Length: 26 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RSM-101)
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 14.5 cm²
Collapsed Height: 89 mm
Stroke Length: 26 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RSM-101)

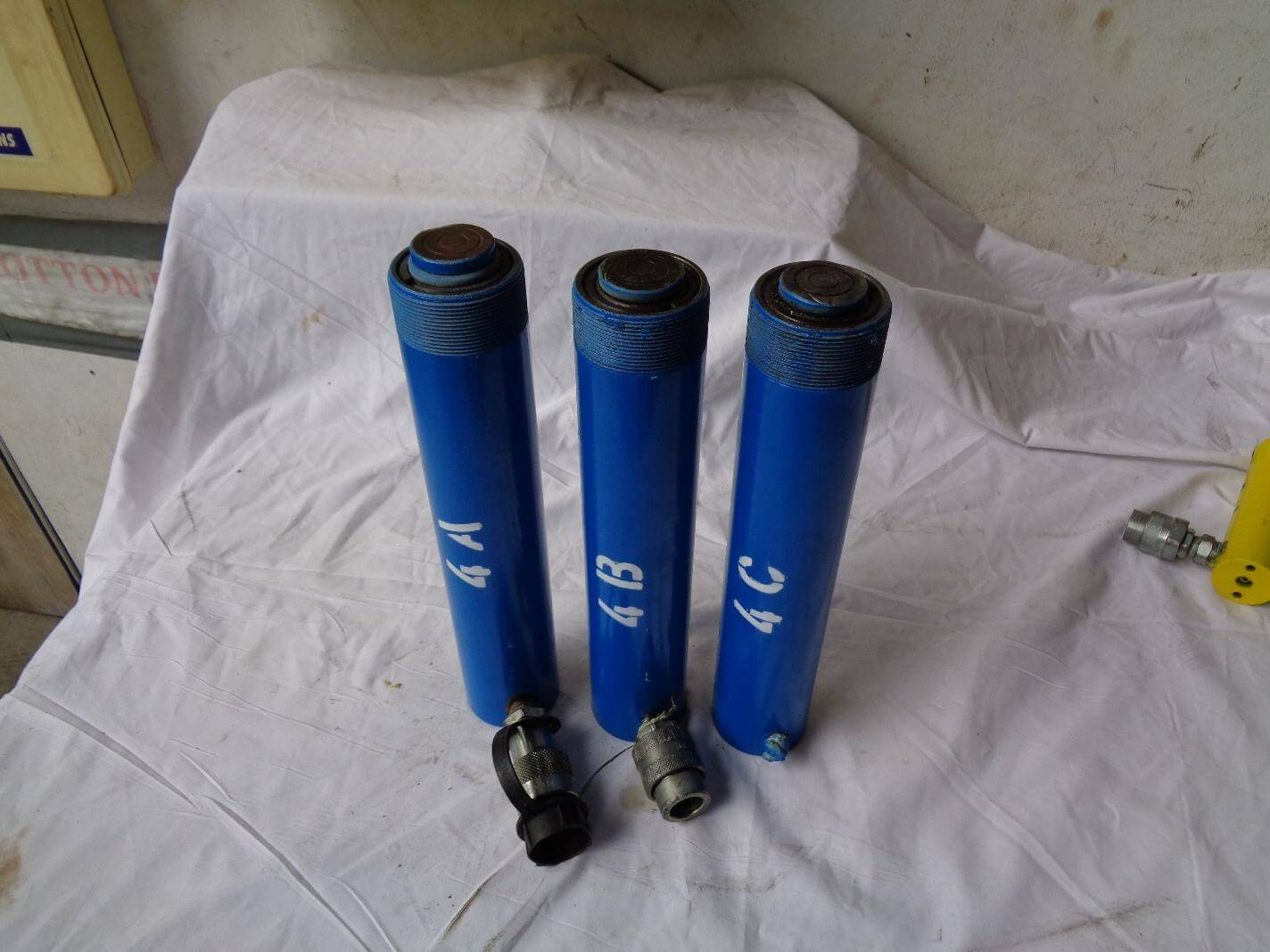

#4A, 4B & 4C
Qty: 3
Cylinder Type: Solid
Tonnage: 10 Ton
Outside Diameter: 57 mm
Cylinder Type: Solid
Tonnage: 10 Ton
Outside Diameter: 57 mm
Plunger/Rod Diameter: 38.1 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 14.5 cm²
Collapsed Height: 298 mm
Stroke Length: 203 mm
Max Pressure: 700 Bar
Make & Model: HYDROTEC
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 14.5 cm²
Collapsed Height: 298 mm
Stroke Length: 203 mm
Max Pressure: 700 Bar
Make & Model: HYDROTEC
#5A, 5B, 5C & 5D
Qty: 4
Cylinder Type: Solid
Tonnage: 10 Ton
Outside Diameter: 57 mm
Cylinder Type: Solid
Tonnage: 10 Ton
Outside Diameter: 57 mm
Plunger/Rod Diameter: 38.1 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 14.5 cm²
Collapsed Height: 349 mm
Stroke Length: 257 mm
Max Pressure: 700 Bar
Make & Model: Sun & Run (RSC-1010)
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 14.5 cm²
Collapsed Height: 349 mm
Stroke Length: 257 mm
Max Pressure: 700 Bar
Make & Model: Sun & Run (RSC-1010)

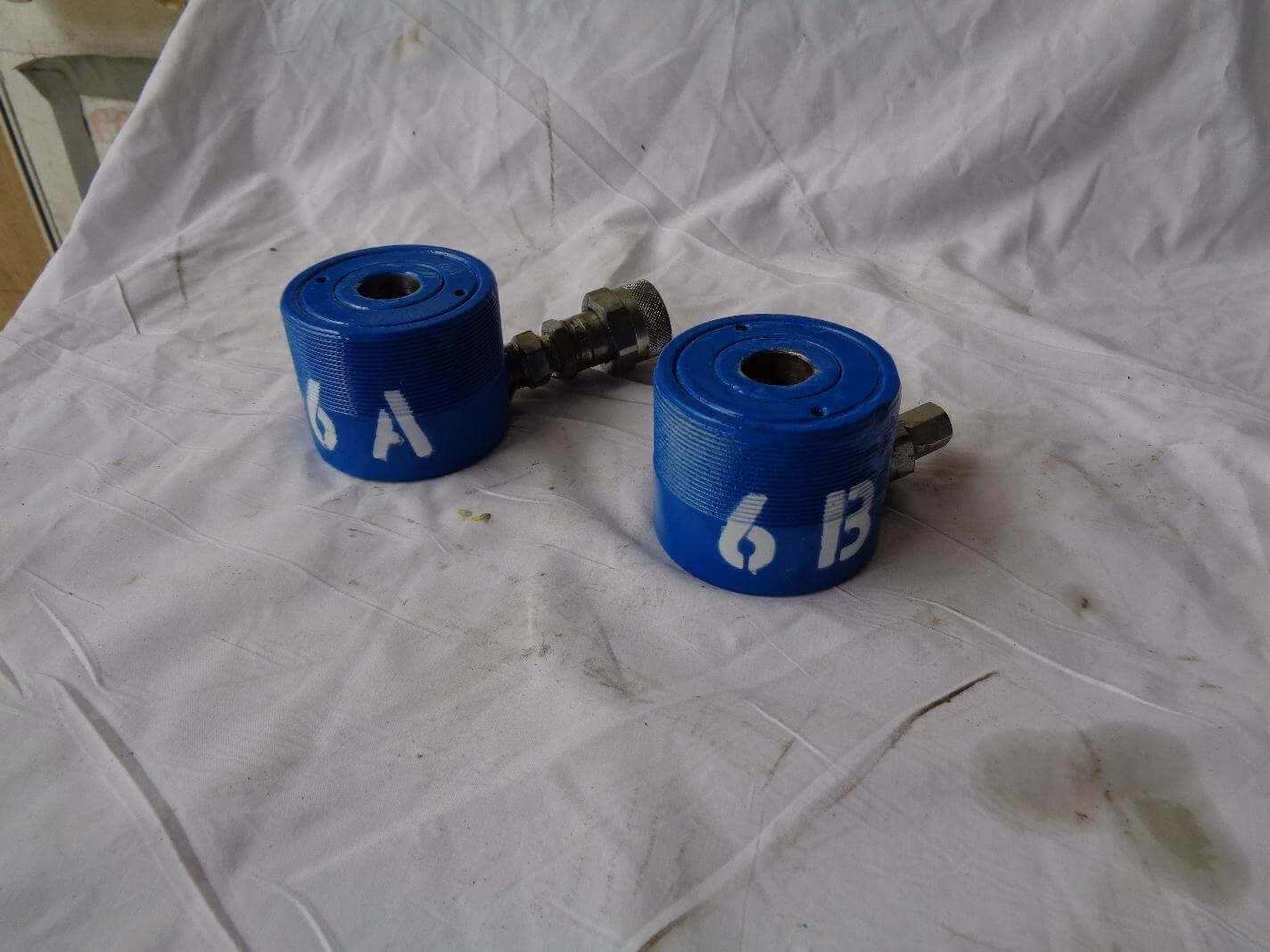

#6A & 6B
Qty: 2
Cylinder Type: Hollow
Tonnage: 5 Ton
Outside Diameter: 69 mm
Cylinder Type: Hollow
Tonnage: 5 Ton
Outside Diameter: 69 mm
Plunger/Rod Diameter: 35.1 mm
Hollow Cylinder Hole Diameter: 19 mm
Cylinder Bore Area: 6.84 cm²
Collapsed Height: 55 mm
Stroke Length: 8 mm
Max Pressure: 700 Bar
Make & Model: HYDROTEC
Hollow Cylinder Hole Diameter: 19 mm
Cylinder Bore Area: 6.84 cm²
Collapsed Height: 55 mm
Stroke Length: 8 mm
Max Pressure: 700 Bar
Make & Model: HYDROTEC

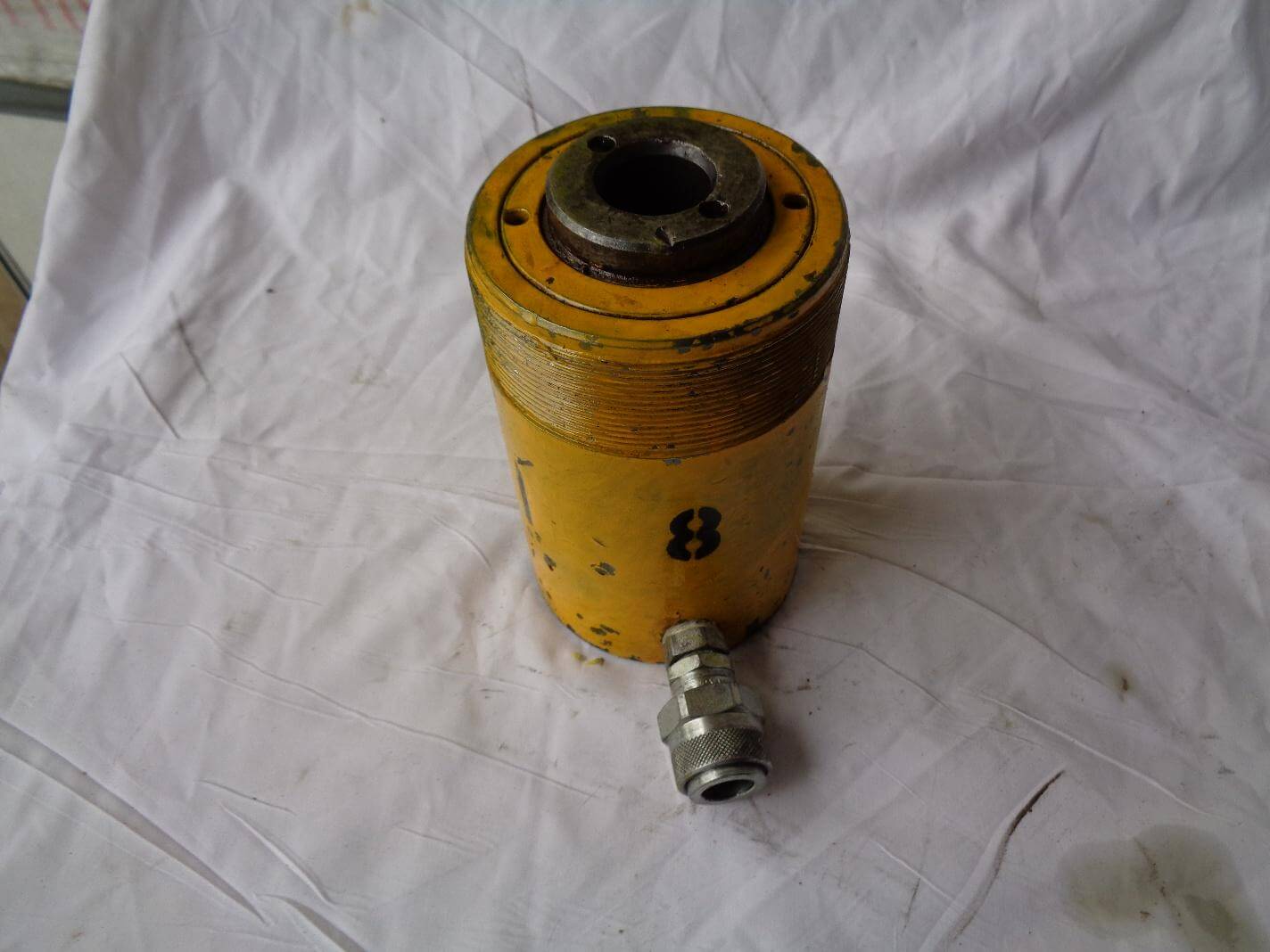

#8
Qty: 1
Cylinder Type: Hollow
Tonnage: 20 Ton
Outside Diameter: 98 mm
Cylinder Type: Hollow
Tonnage: 20 Ton
Outside Diameter: 98 mm
Plunger/Rod Diameter: 54.1 mm
Hollow Cylinder Hole Diameter: 26.9 mm
Cylinder Bore Area: 30.7 cm²
Collapsed Height: 162 mm
Stroke Length: 49 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-202)
Hollow Cylinder Hole Diameter: 26.9 mm
Cylinder Bore Area: 30.7 cm²
Collapsed Height: 162 mm
Stroke Length: 49 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-202)

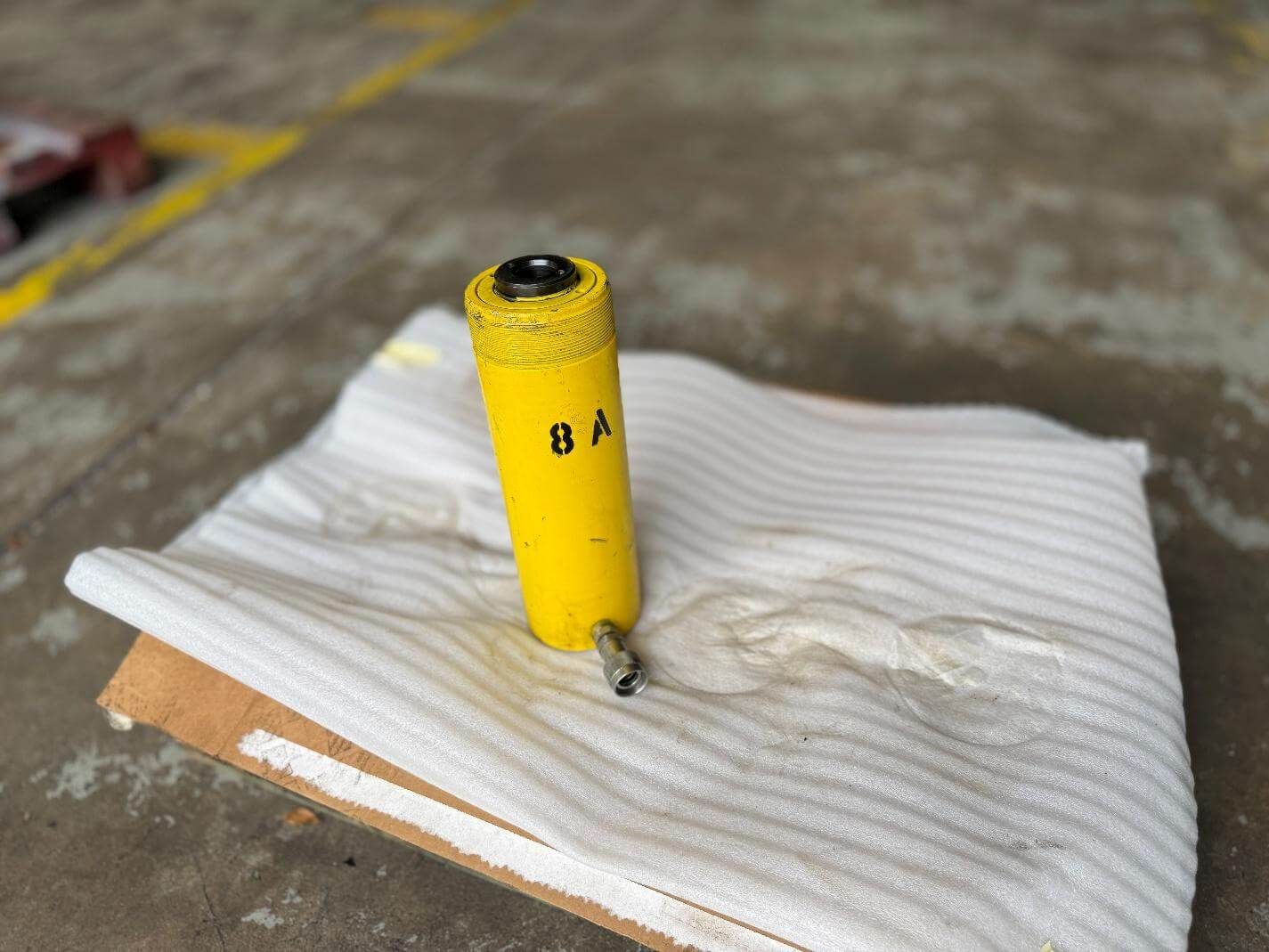

#8A
Qty: 1
Cylinder Type: Hollow
Tonnage: 20 Ton
Outside Diameter: 98 mm
Cylinder Type: Hollow
Tonnage: 20 Ton
Outside Diameter: 98 mm
Plunger/Rod Diameter: 54.1 mm
Hollow Cylinder Hole Diameter: 26.9 mm
Cylinder Bore Area: 30.7 cm²
Collapsed Height: 306 mm
Stroke Length: 155 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-206)
Hollow Cylinder Hole Diameter: 26.9 mm
Cylinder Bore Area: 30.7 cm²
Collapsed Height: 306 mm
Stroke Length: 155 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-206)

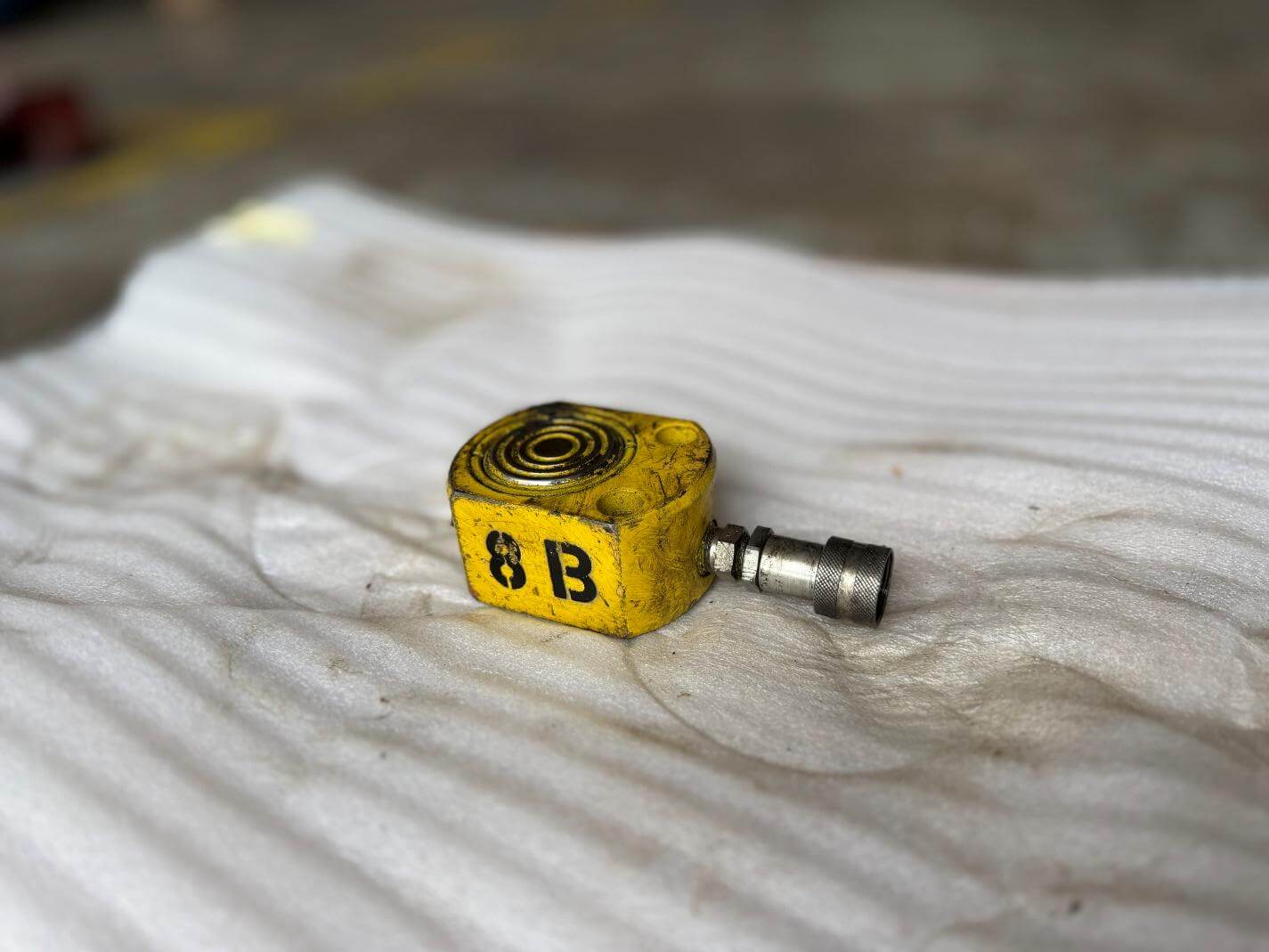

#8B
Qty: 1
Cylinder Type: Solid
Tonnage: 20 Ton
Outside Diameter: 101 x 76 mm
Cylinder Type: Solid
Tonnage: 20 Ton
Outside Diameter: 101 x 76 mm
Plunger/Rod Diameter: 49.3 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 28.7 cm²
Collapsed Height: 51 mm
Stroke Length: 11 mm
Max Pressure: 700 Bar
Make & Model: SUN & RUN (RSSM-200)
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 28.7 cm²
Collapsed Height: 51 mm
Stroke Length: 11 mm
Max Pressure: 700 Bar
Make & Model: SUN & RUN (RSSM-200)

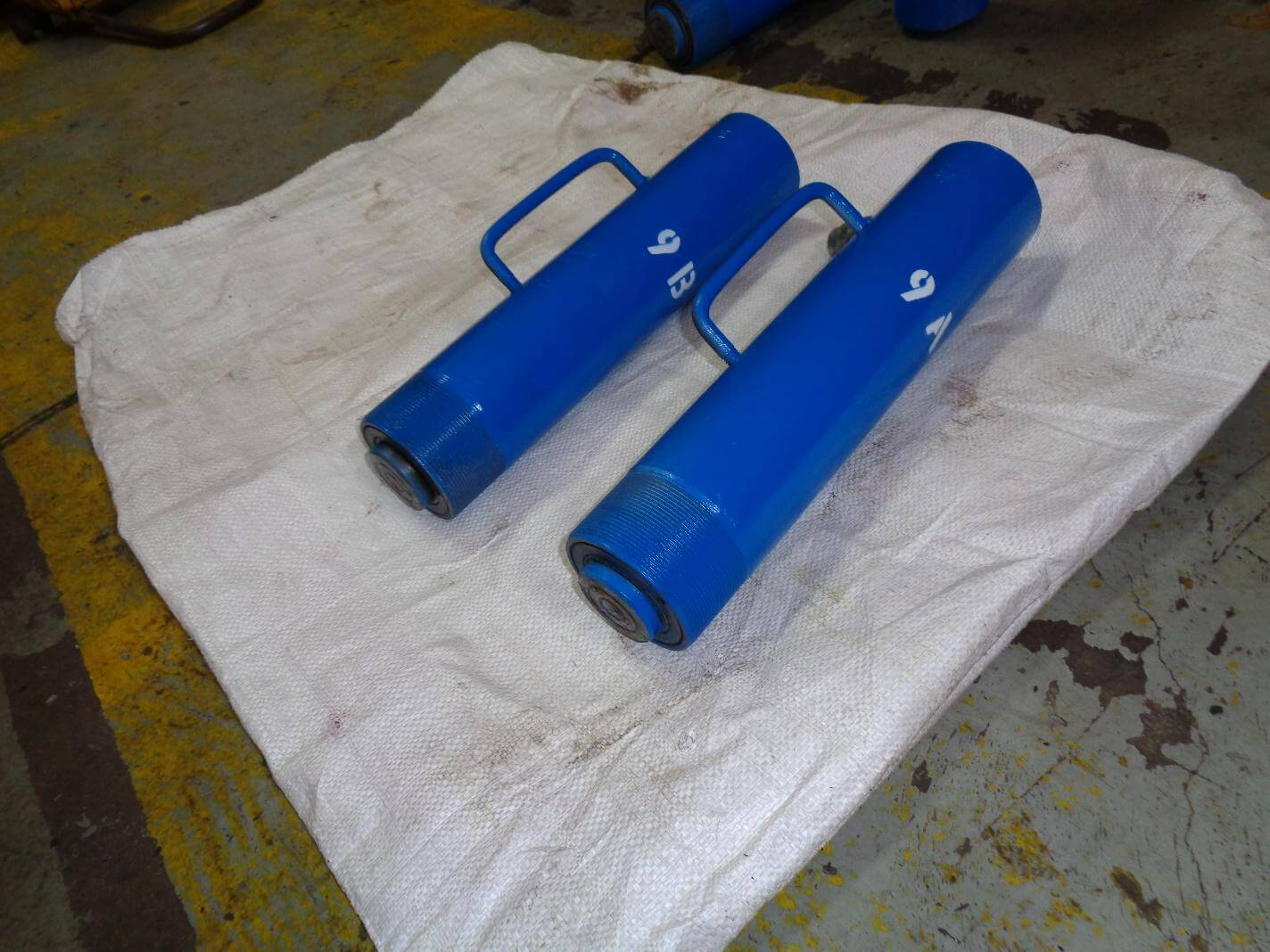

#9A & 9B
Qty: 2
Cylinder Type: Solid
Tonnage: 25 Ton
Outside Diameter: 85 mm
Cylinder Type: Solid
Tonnage: 25 Ton
Outside Diameter: 85 mm
Plunger/Rod Diameter: 57.2 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 33.2 cm²
Collapsed Height: 374 mm
Stroke Length: 261 mm
Max Pressure: 700 Bar
Make & Model: HYDROTEC
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 33.2 cm²
Collapsed Height: 374 mm
Stroke Length: 261 mm
Max Pressure: 700 Bar
Make & Model: HYDROTEC

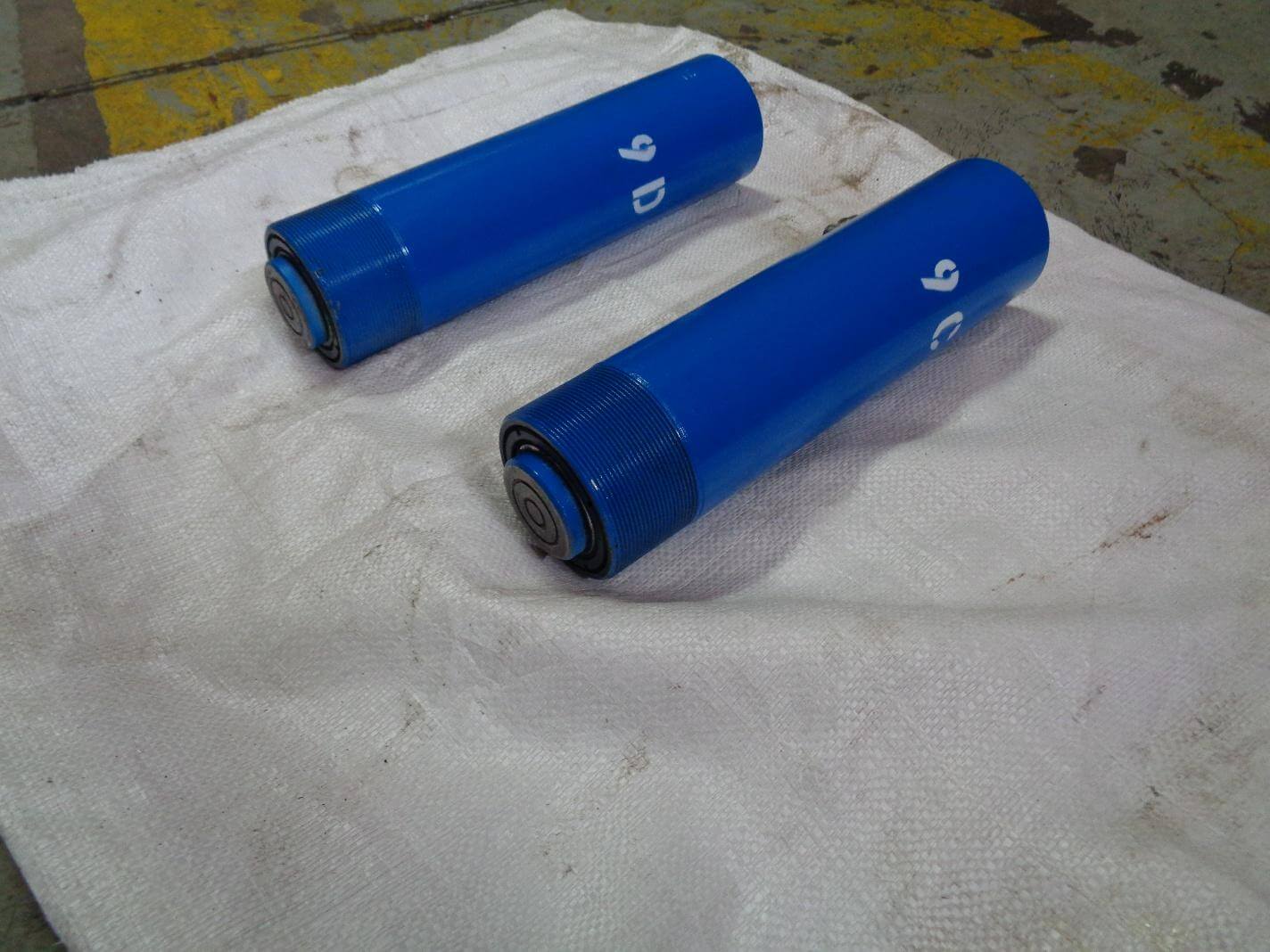

#9C & 9D
Qty: 2
Cylinder Type: Solid
Tonnage: 25 Ton
Outside Diameter: 85 mm
Cylinder Type: Solid
Tonnage: 25 Ton
Outside Diameter: 85 mm
Plunger/Rod Diameter: 57.2 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 33.2 cm²
Collapsed Height: 323 mm
Stroke Length: 210 mm
Max Pressure: 700 Bar
Make & Model: HYDROTEC
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 33.2 cm²
Collapsed Height: 323 mm
Stroke Length: 210 mm
Max Pressure: 700 Bar
Make & Model: HYDROTEC

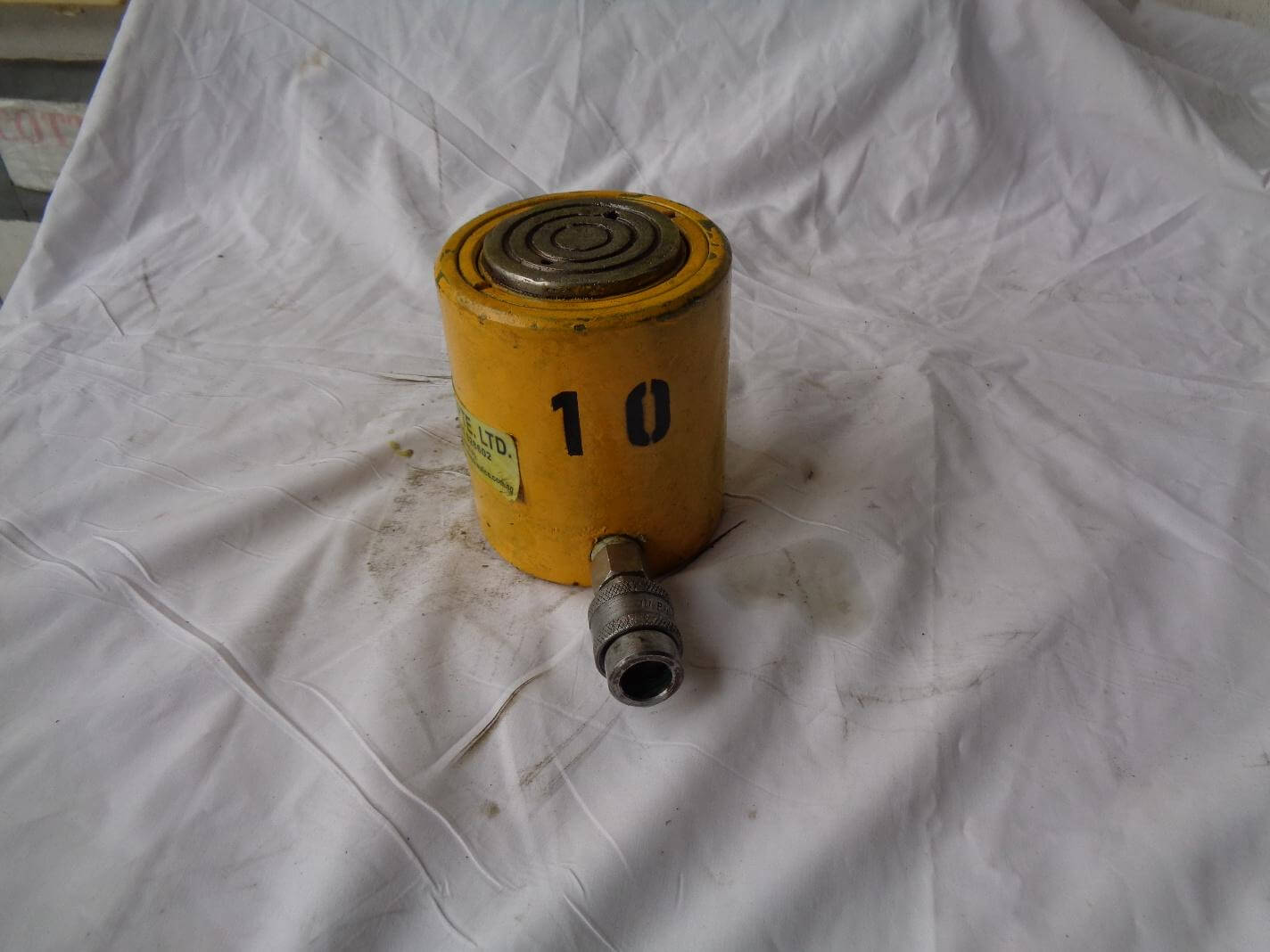

#10
Qty: 1
Cylinder Type: Solid
Tonnage: 30 Ton
Outside Diameter: 101 mm
Cylinder Type: Solid
Tonnage: 30 Ton
Outside Diameter: 101 mm
Plunger/Rod Diameter: 66.5 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 42.1 cm²
Collapsed Height: 117 mm
Stroke Length: 62 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCS-302)
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 42.1 cm²
Collapsed Height: 117 mm
Stroke Length: 62 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCS-302)
16A – 75 KW / 100 HP
11.
HPU No: 16A – 75 KW / 100 HP
Electric Motor: 50 HZ / 1480 Rpm / 230V / 228A & 460V / 114A
60 HZ / 1760 Rpm / 190V / 270A & 380V / 135A
Pump Flow Rate: 250 LPM @ 100 Bar
160 LPM @ 200 Bar
105 LPM @ 300 Bar
75 LPM @ 350 Bar
Operating Pressure: 350 Bar
Hydraulic Tank Capacity: 1000 Litres
Power Unit Size: 2500(L) x 2000(W) x 2500(H)
Weight Of Power Unit: 3200KG
Quantity: 1

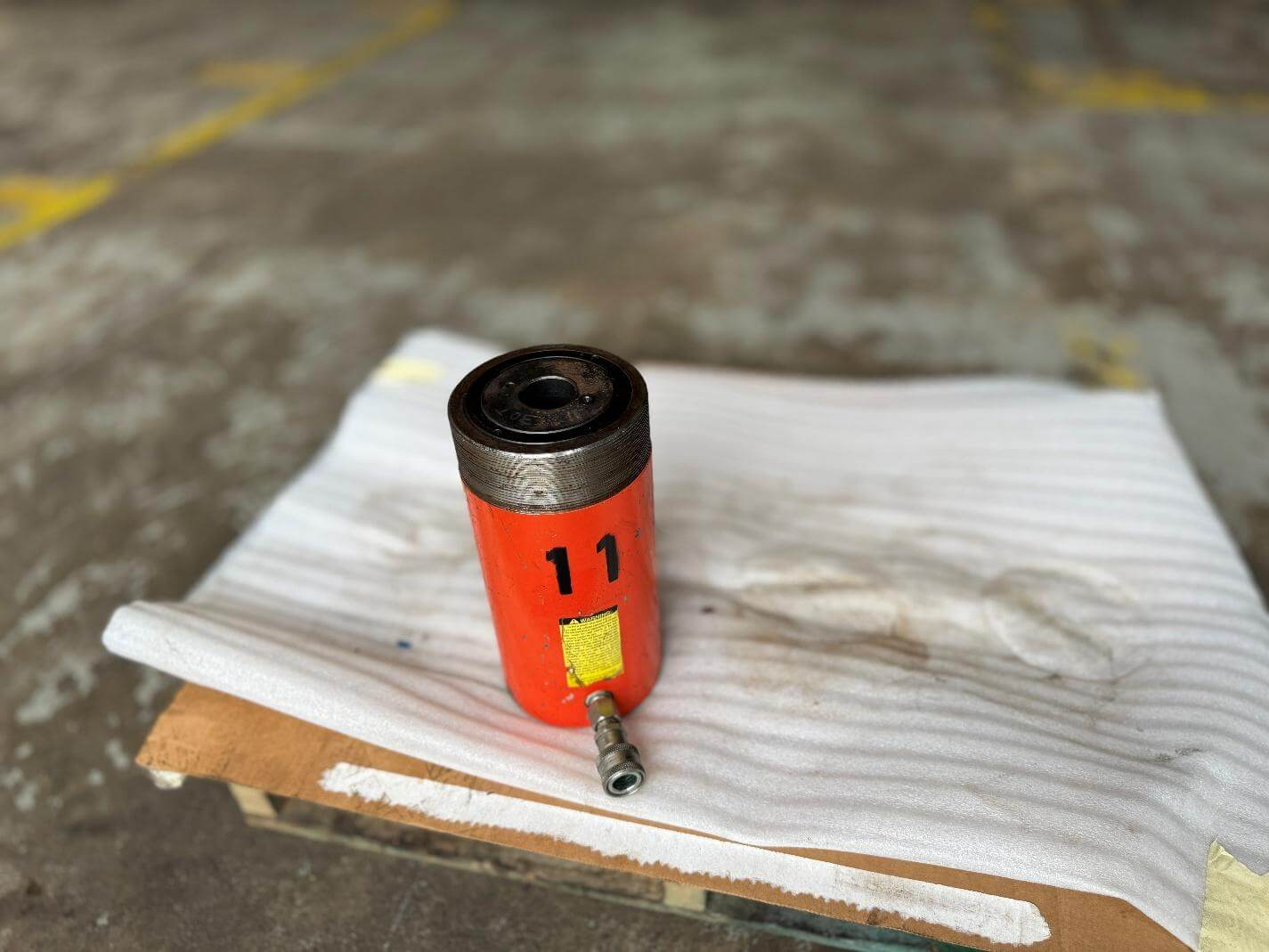

#11
Qty: 1
Cylinder Type: Hollow
Tonnage: 30 Ton
Outside Diameter: 121 mm
Cylinder Type: Hollow
Tonnage: 30 Ton
Outside Diameter: 121 mm
Plunger/Rod Diameter: 82.6 mm
Hollow Cylinder Hole Diameter: 32.5 mm
Cylinder Bore Area: 40.9 cm²
Collapsed Height: 248 mm
Stroke Length: 152.4 mm
Max Pressure: 700 Bar
Make & Model: POWER TEAM RH306
Hollow Cylinder Hole Diameter: 32.5 mm
Cylinder Bore Area: 40.9 cm²
Collapsed Height: 248 mm
Stroke Length: 152.4 mm
Max Pressure: 700 Bar
Make & Model: POWER TEAM RH306

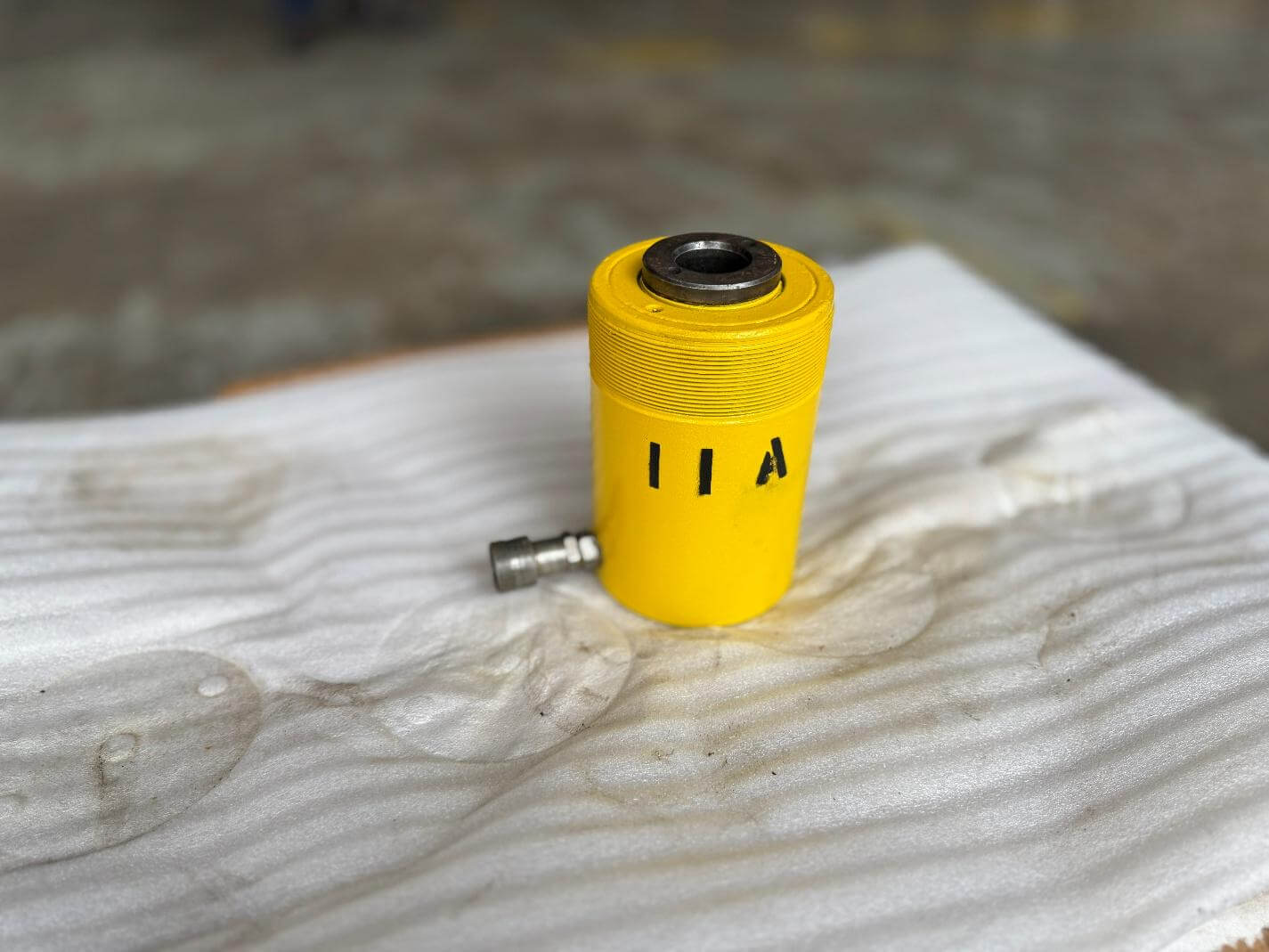

#11A
Qty: 1
Cylinder Type: Hollow
Tonnage: 30 Ton
Outside Diameter: 114 mm
Cylinder Type: Hollow
Tonnage: 30 Ton
Outside Diameter: 114 mm
Plunger/Rod Diameter: 63.5 mm
Hollow Cylinder Hole Diameter: 33.3 mm
Cylinder Bore Area: 46.6 cm²
Collapsed Height: 178 mm
Stroke Length: 62 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-306)
Hollow Cylinder Hole Diameter: 33.3 mm
Cylinder Bore Area: 46.6 cm²
Collapsed Height: 178 mm
Stroke Length: 62 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-306)

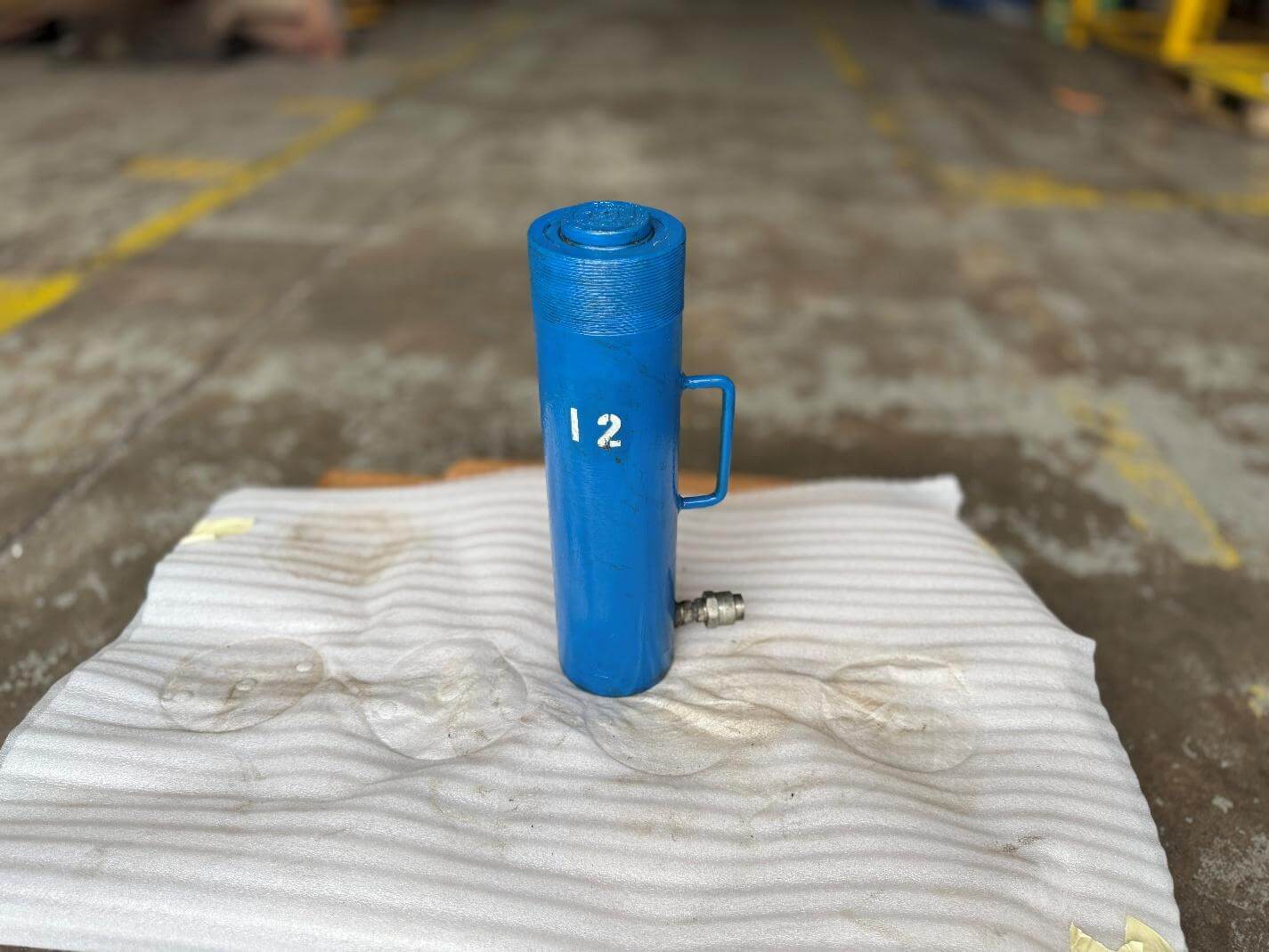

#12
Qty: 1
Cylinder Type: Solid
Tonnage: 30 Ton
Outside Diameter: 101 mm
Cylinder Type: Solid
Tonnage: 30 Ton
Outside Diameter: 101 mm
Plunger/Rod Diameter: 57.2 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 42.1 cm²
Collapsed Height: 387 mm
Stroke Length: 209 mm
Max Pressure: 700 Bar
Make & Model: HYDROTEC
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 42.1 cm²
Collapsed Height: 387 mm
Stroke Length: 209 mm
Max Pressure: 700 Bar
Make & Model: HYDROTEC

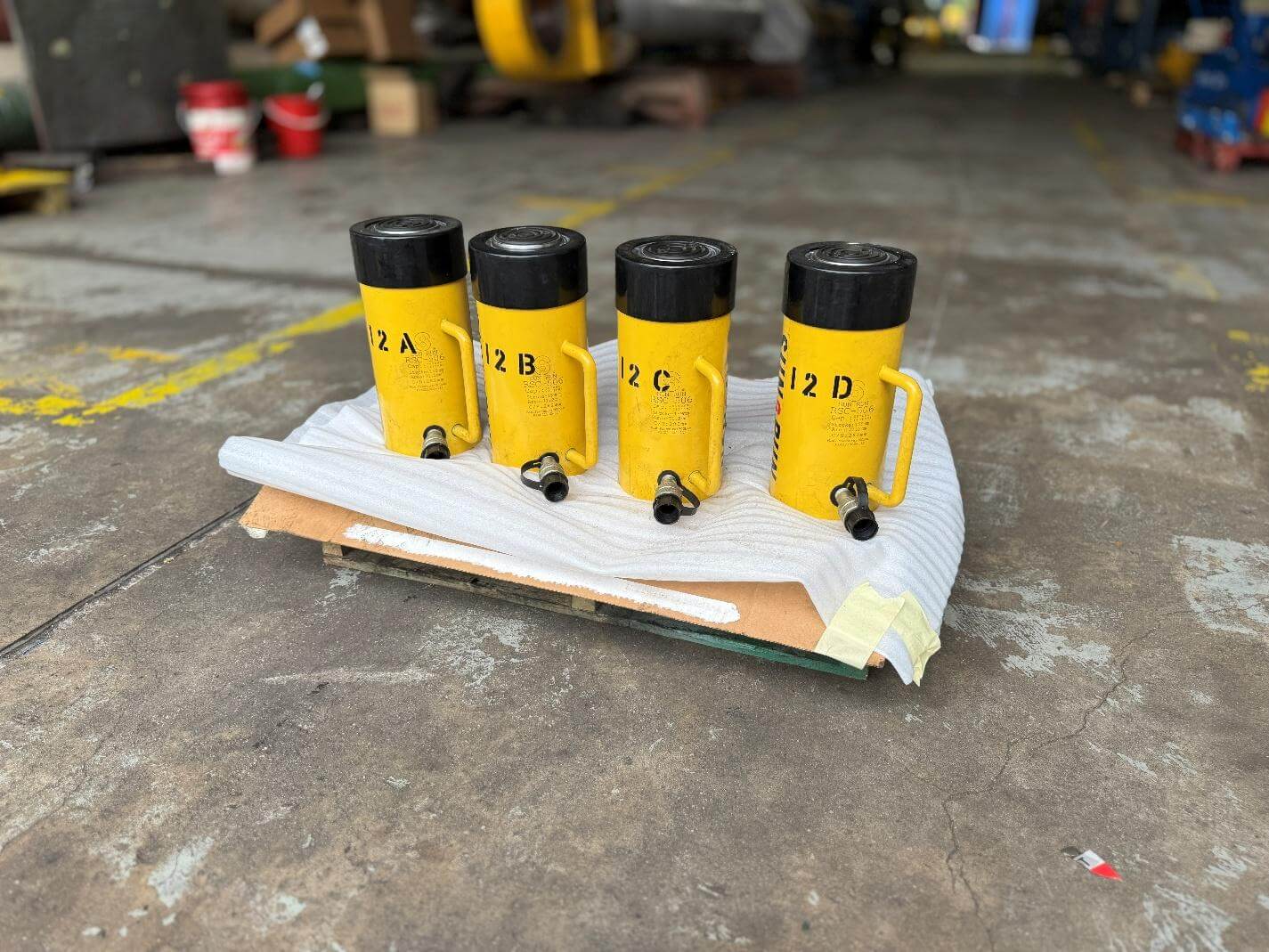

#12A, 12B, 12C & 12D
Qty: 4
Cylinder Type: Solid
Tonnage: 50 Ton
Outside Diameter: 127 mm
Cylinder Type: Solid
Tonnage: 50 Ton
Outside Diameter: 127 mm
Plunger/Rod Diameter: 79.5 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 71.2 cm²
Collapsed Height: 282 mm
Stroke Length: 159 mm
Max Pressure: 700 Bar
Make & Model: SUN & RUN (RSC-506)
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 71.2 cm²
Collapsed Height: 282 mm
Stroke Length: 159 mm
Max Pressure: 700 Bar
Make & Model: SUN & RUN (RSC-506)

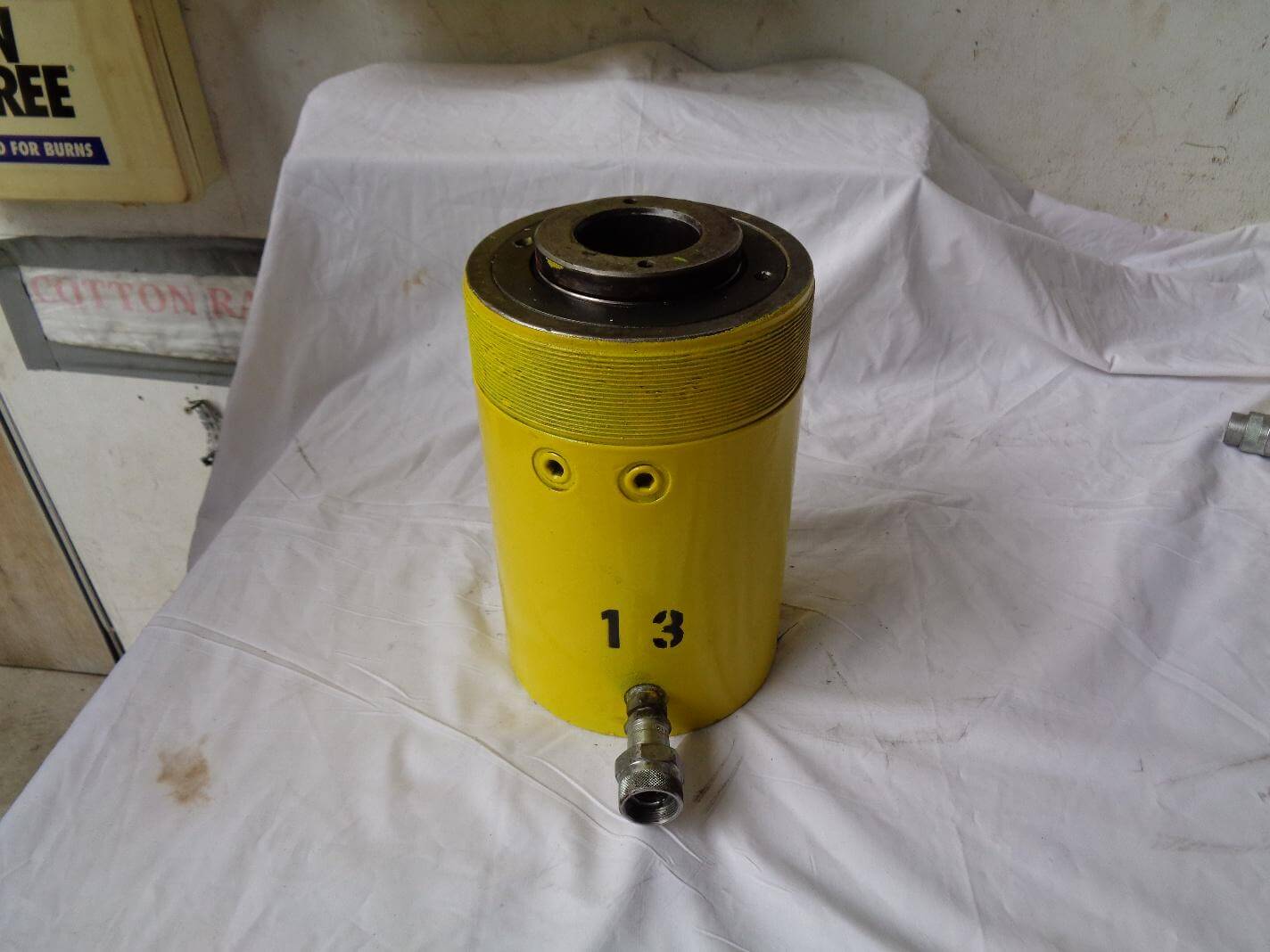

#13
Qty: 1
Cylinder Type: Hollow
Tonnage: 60 Ton
Outside Diameter: 159 mm
Cylinder Type: Hollow
Tonnage: 60 Ton
Outside Diameter: 159 mm
Plunger/Rod Diameter: 91.9 mm
Hollow Cylinder Hole Diameter: 53.8
Cylinder Bore Area: 82.3 cm²
Collapsed Height: 247 mm
Stroke Length: 76 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-603)
Hollow Cylinder Hole Diameter: 53.8
Cylinder Bore Area: 82.3 cm²
Collapsed Height: 247 mm
Stroke Length: 76 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-603)

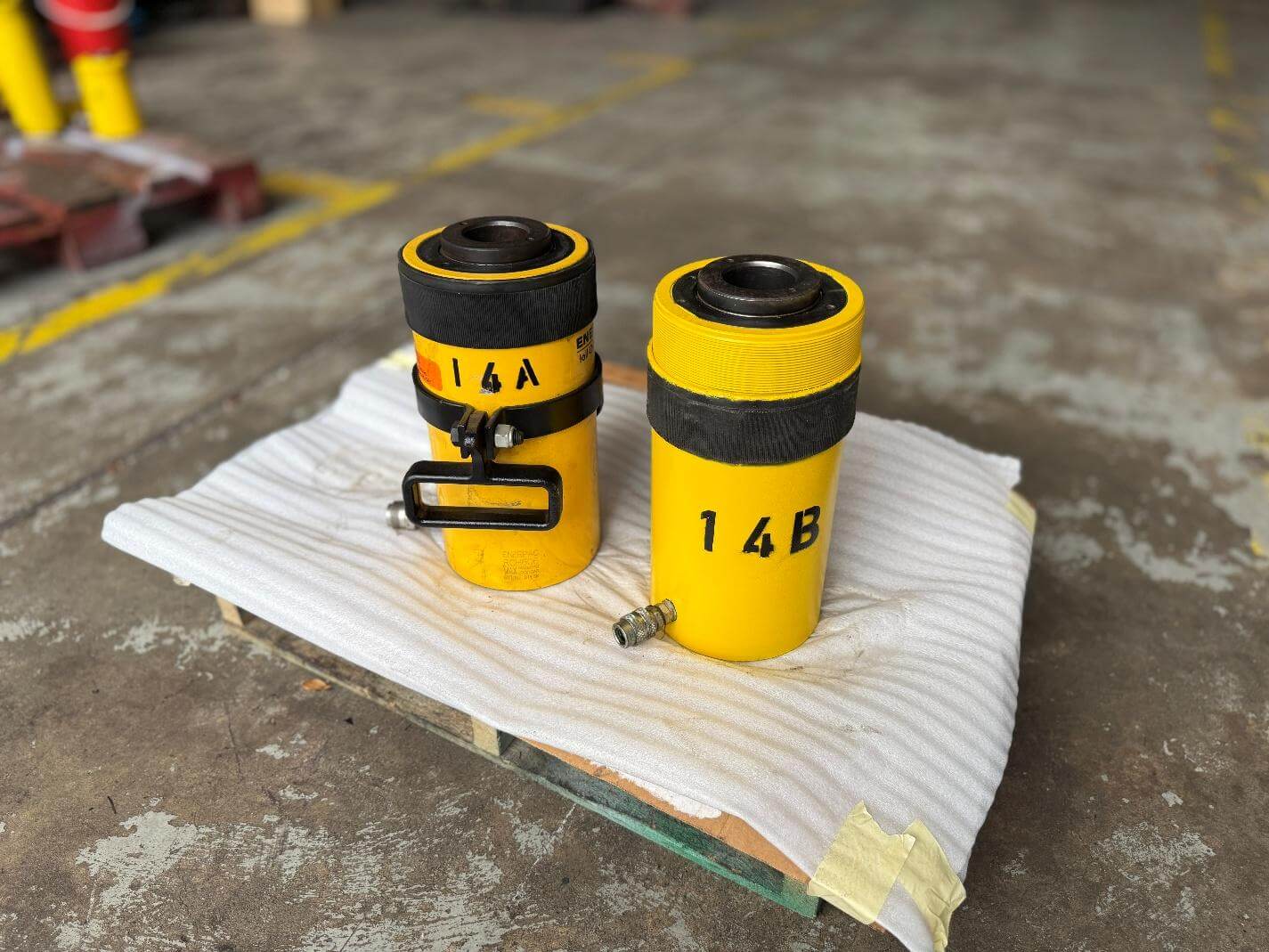

#14A & 14B
Qty: 2
Cylinder Type: Hollow
Tonnage: 60 Ton
Outside Diameter: 159 mm
Cylinder Type: Hollow
Tonnage: 60 Ton
Outside Diameter: 159 mm
Plunger/Rod Diameter: 91.9 mm
Hollow Cylinder Hole Diameter: 53.8
Cylinder Bore Area: 82.3 cm²
Collapsed Height: 323 mm
Stroke Length: 153 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-606)
Hollow Cylinder Hole Diameter: 53.8
Cylinder Bore Area: 82.3 cm²
Collapsed Height: 323 mm
Stroke Length: 153 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-606)

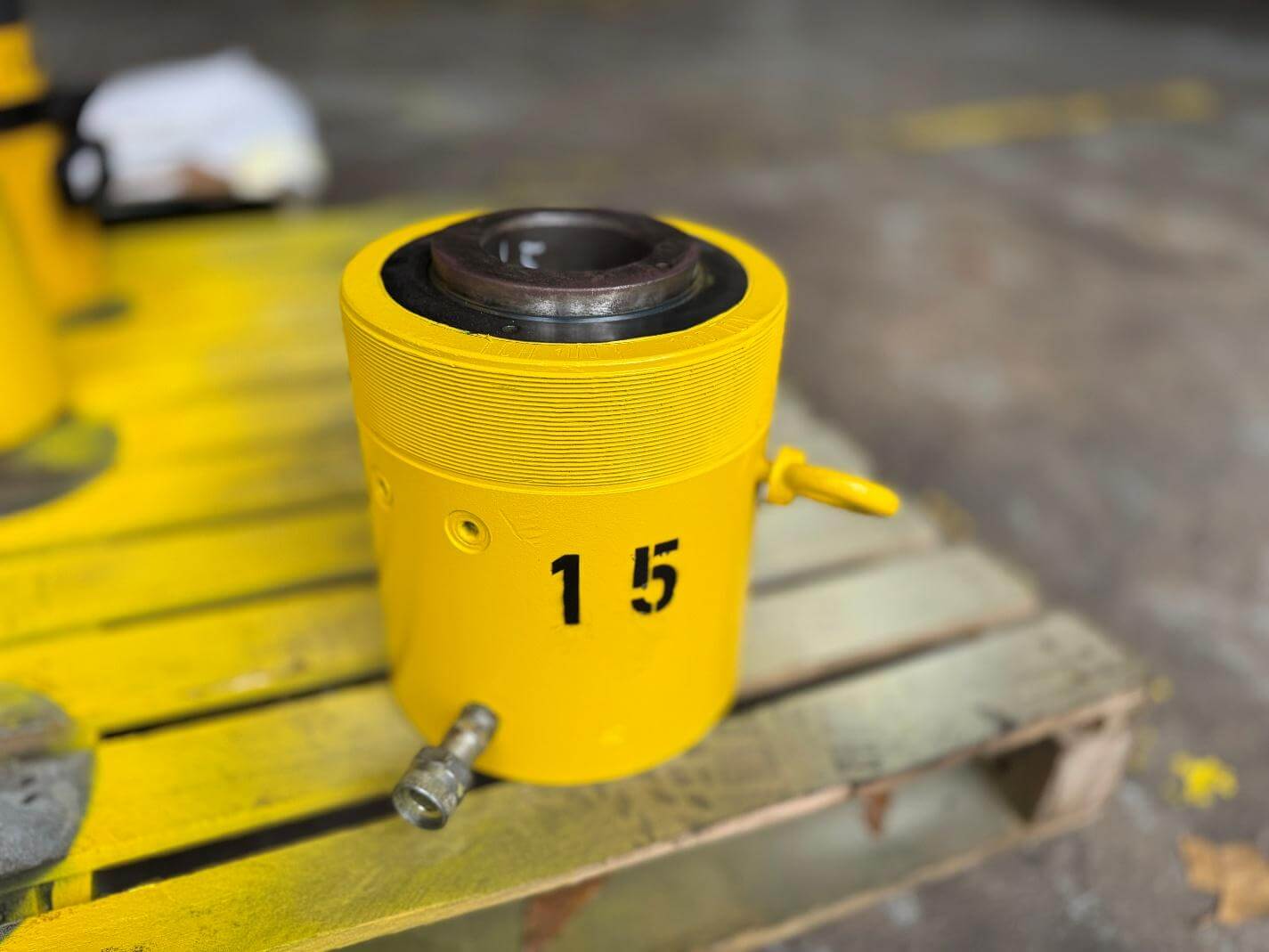

#15
Qty: 1
Cylinder Type: Hollow
Tonnage: 95 Ton
Outside Diameter: 212 mm
Cylinder Type: Hollow
Tonnage: 95 Ton
Outside Diameter: 212 mm
Plunger/Rod Diameter: 127 mm
Hollow Cylinder Hole Diameter: 79
Cylinder Bore Area: 133 cm²
Collapsed Height: 254 mm
Stroke Length: 76 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-1003)
Hollow Cylinder Hole Diameter: 79
Cylinder Bore Area: 133 cm²
Collapsed Height: 254 mm
Stroke Length: 76 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-1003)

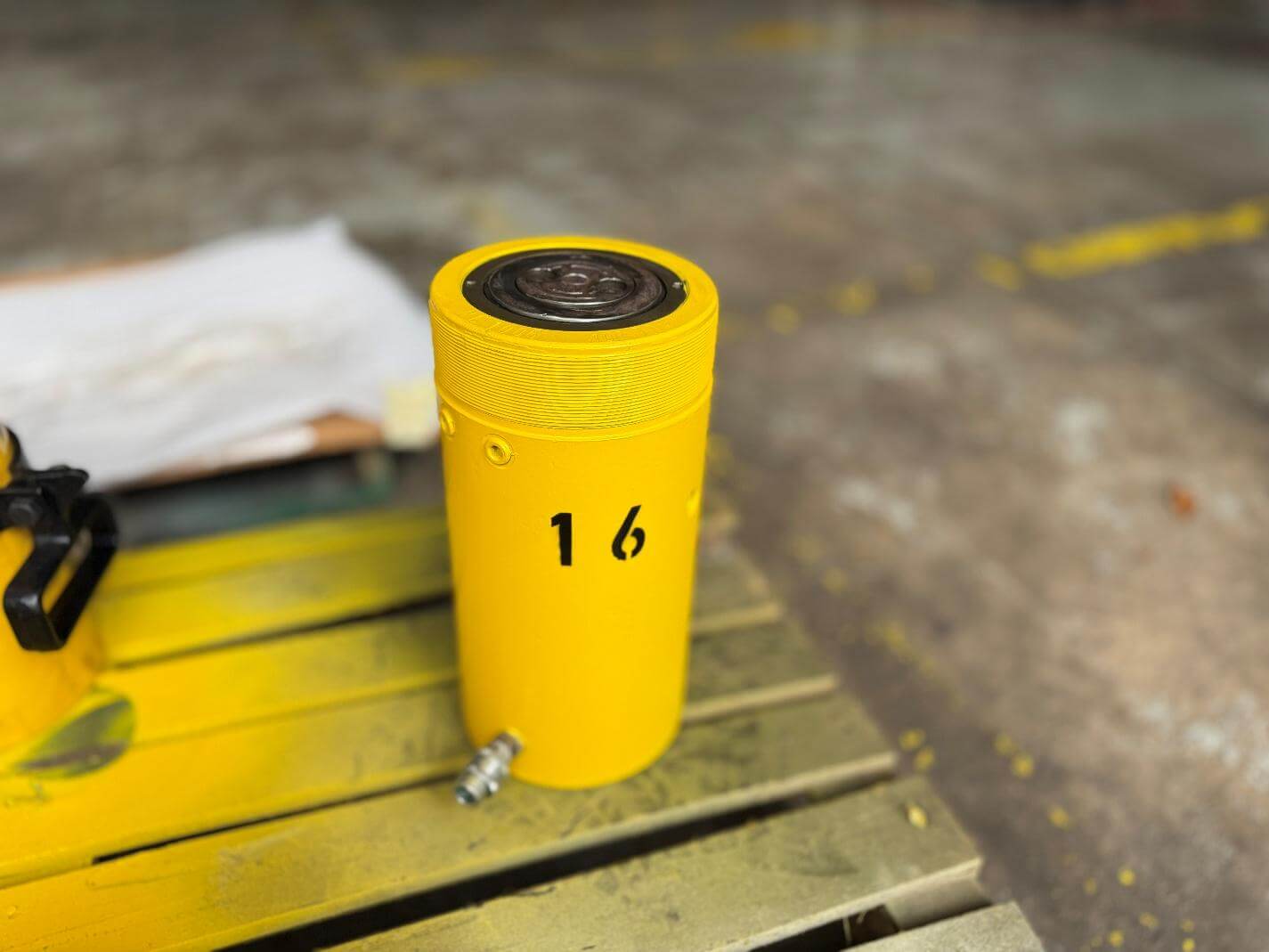

#16
Qty: 1
Cylinder Type: Solid
Tonnage: 95 Ton
Outside Diameter: 177 mm
Cylinder Type: Solid
Tonnage: 95 Ton
Outside Diameter: 177 mm
Plunger/Rod Diameter: 104.9 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 133.3 cm²
Collapsed Height: 357 mm
Stroke Length: 168 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-1006)
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 133.3 cm²
Collapsed Height: 357 mm
Stroke Length: 168 mm
Max Pressure: 700 Bar
Make & Model: ENERPAC (RCH-1006)

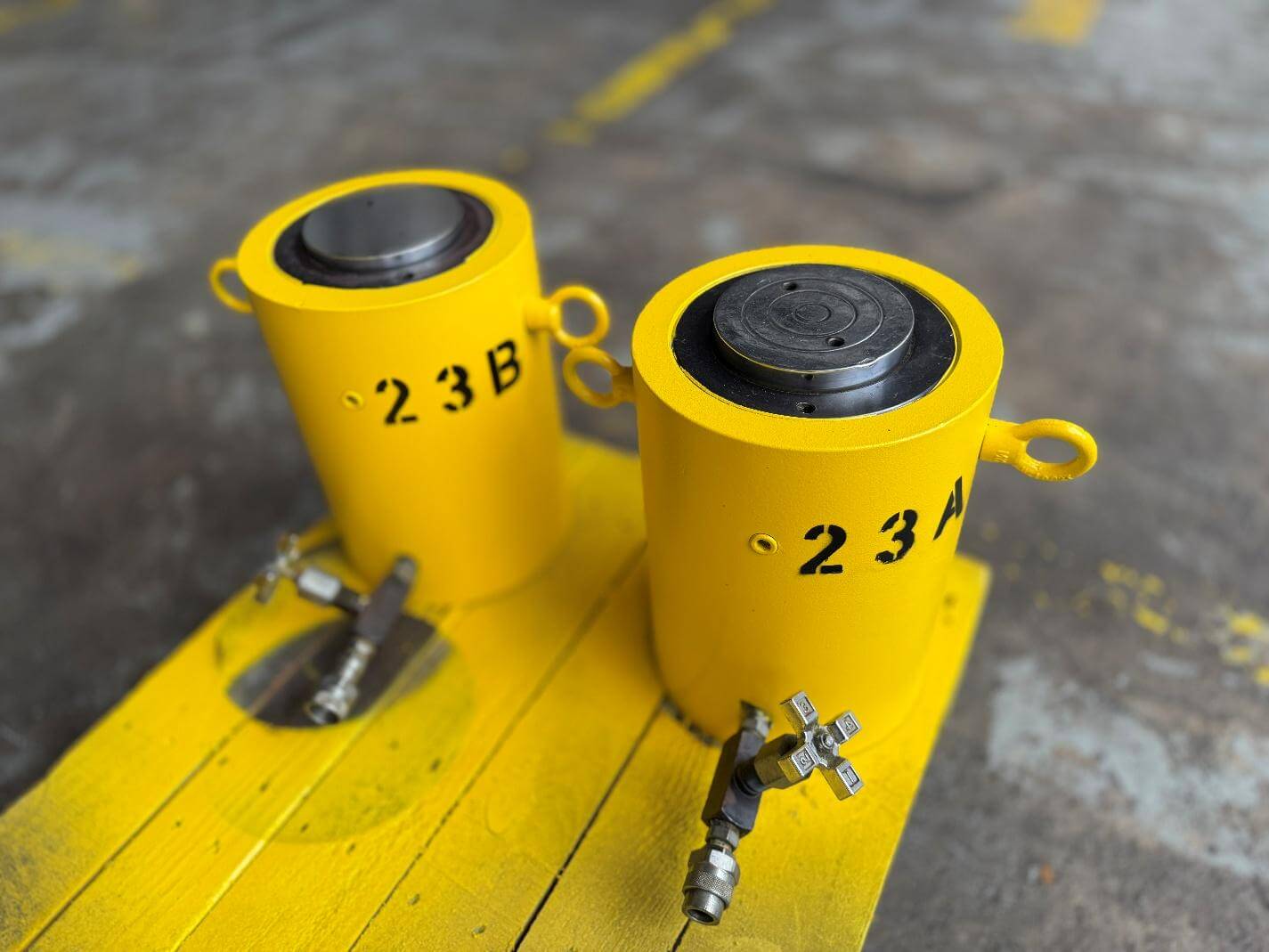

#23A & 23B
Qty: 2
Cylinder Type: Solid
Tonnage: 150 Ton
Outside Diameter: 215 mm
Cylinder Type: Solid
Tonnage: 150 Ton
Outside Diameter: 215 mm
Plunger/Rod Diameter: 115 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 200.96 cm²
Collapsed Height: 300 mm
Stroke Length: 150 mm
Max Pressure: 700 Bar
Make & Model: SUN & RUN (S150-150)
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 200.96 cm²
Collapsed Height: 300 mm
Stroke Length: 150 mm
Max Pressure: 700 Bar
Make & Model: SUN & RUN (S150-150)

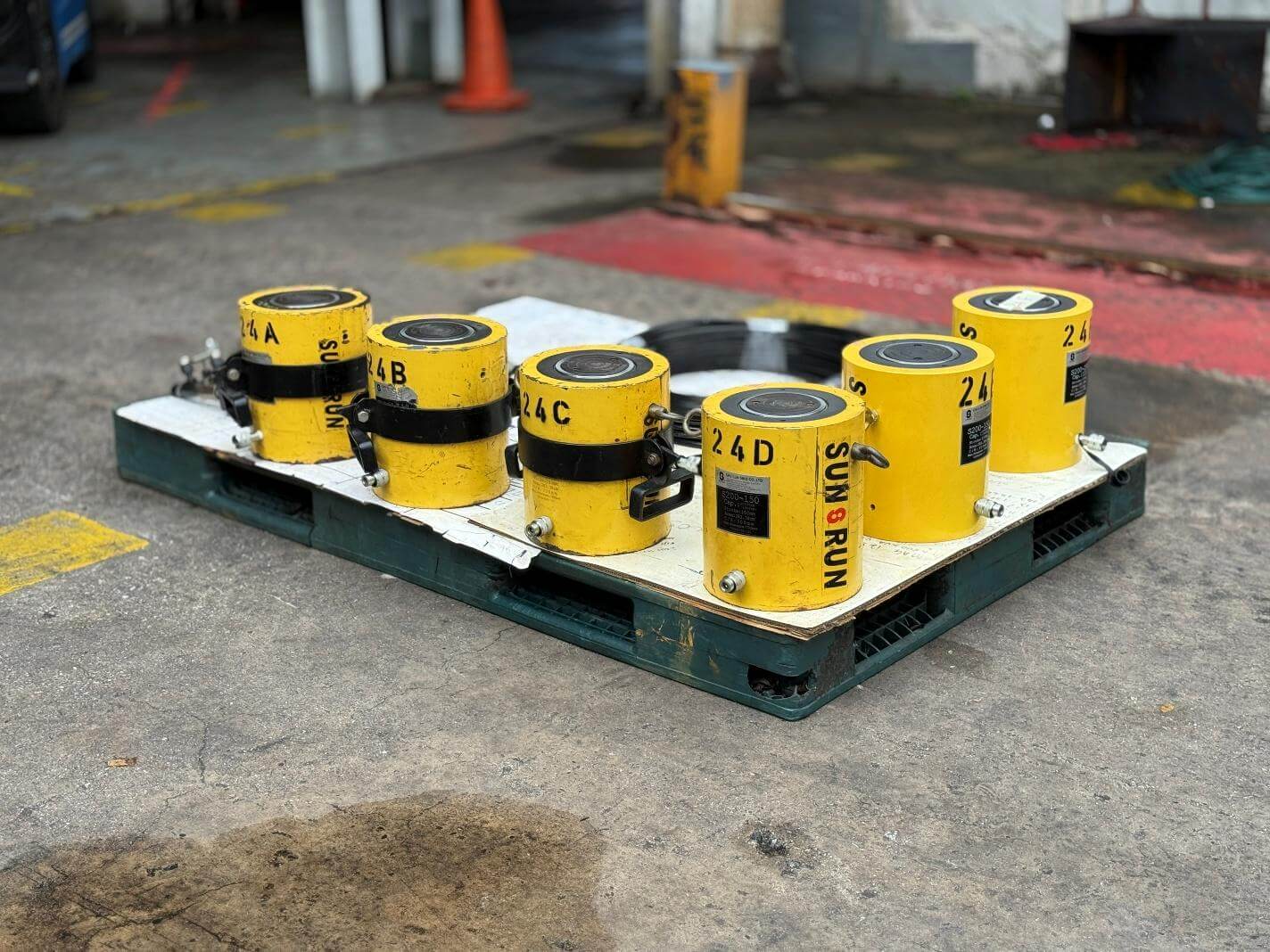

#24A to 24F
Qty: 6
Cylinder Type: Solid
Tonnage: 200 Ton
Outside Diameter: 255 mm
Cylinder Type: Solid
Tonnage: 200 Ton
Outside Diameter: 255 mm
Plunger/Rod Diameter: 135 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 283.38 cm²
Collapsed Height: 300 mm
Stroke Length: 150 mm
Max Pressure: 700 Bar
Make & Model: SUN & RUN (S200-150)
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 283.38 cm²
Collapsed Height: 300 mm
Stroke Length: 150 mm
Max Pressure: 700 Bar
Make & Model: SUN & RUN (S200-150)

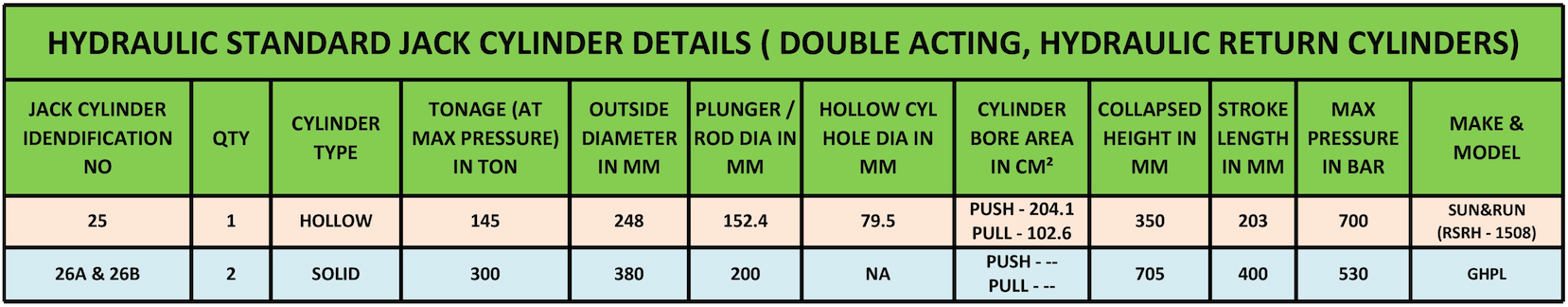

Hydraulic Standard Jack Cylinder Details
(Double Acting, Hydraulic Return Cylinders)

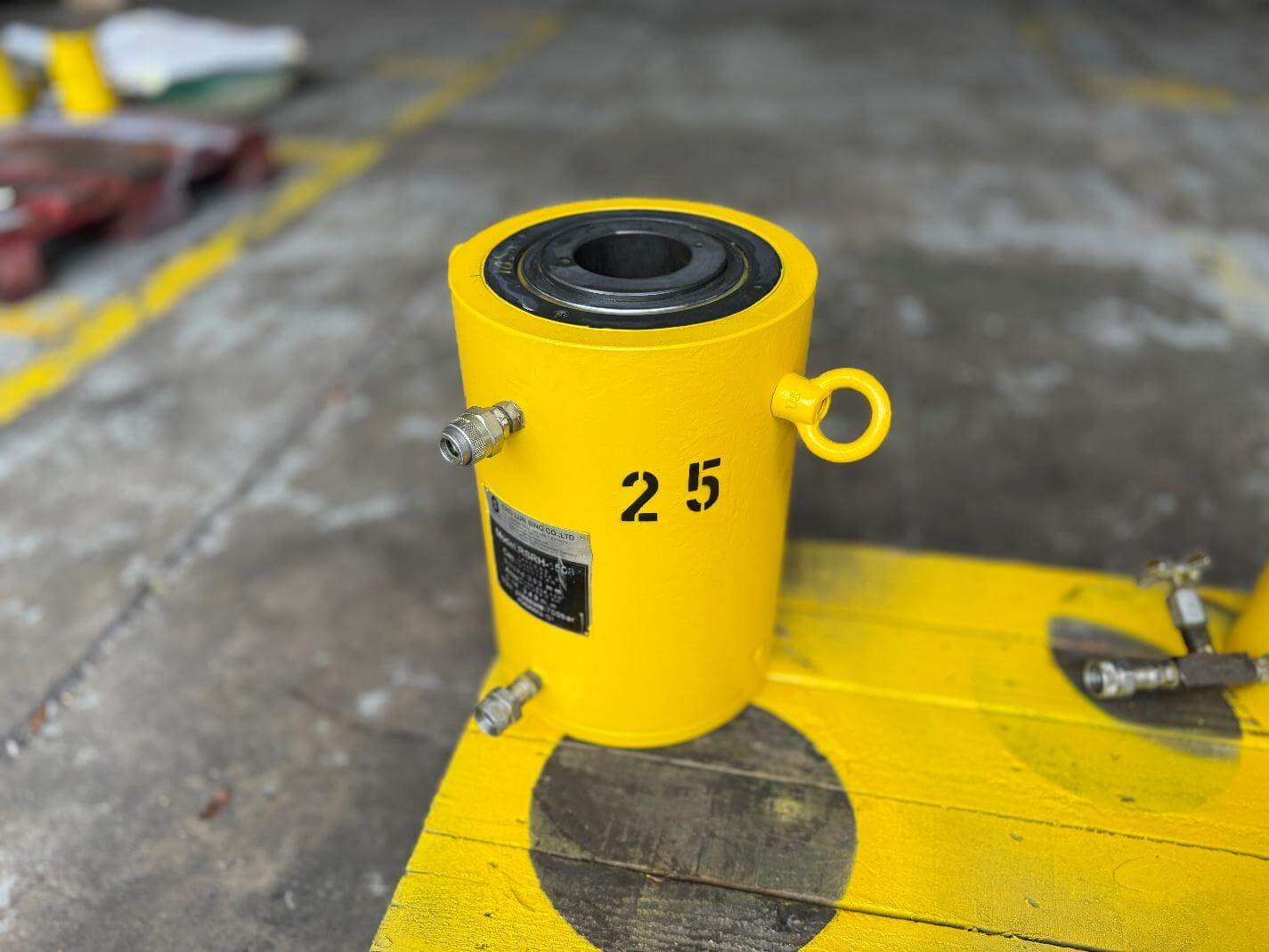

#25
Qty: 1
Cylinder Type: Hollow
Tonnage: 145 Ton
Outside Diameter: 248 mm
Cylinder Type: Hollow
Tonnage: 145 Ton
Outside Diameter: 248 mm
Plunger/Rod Diameter: 152.4 mm
Hollow Cylinder Hole Diameter: 79.5 mm
Cylinder Bore Area: Push – 204.1 cm², Pull – 102.6 cm²
Collapsed Height: 350 mm
Stroke Length: 203 mm
Max Pressure: 700 Bar
Make & Model: SUN & RUN (RSRH – 1508)
Hollow Cylinder Hole Diameter: 79.5 mm
Cylinder Bore Area: Push – 204.1 cm², Pull – 102.6 cm²
Collapsed Height: 350 mm
Stroke Length: 203 mm
Max Pressure: 700 Bar
Make & Model: SUN & RUN (RSRH – 1508)

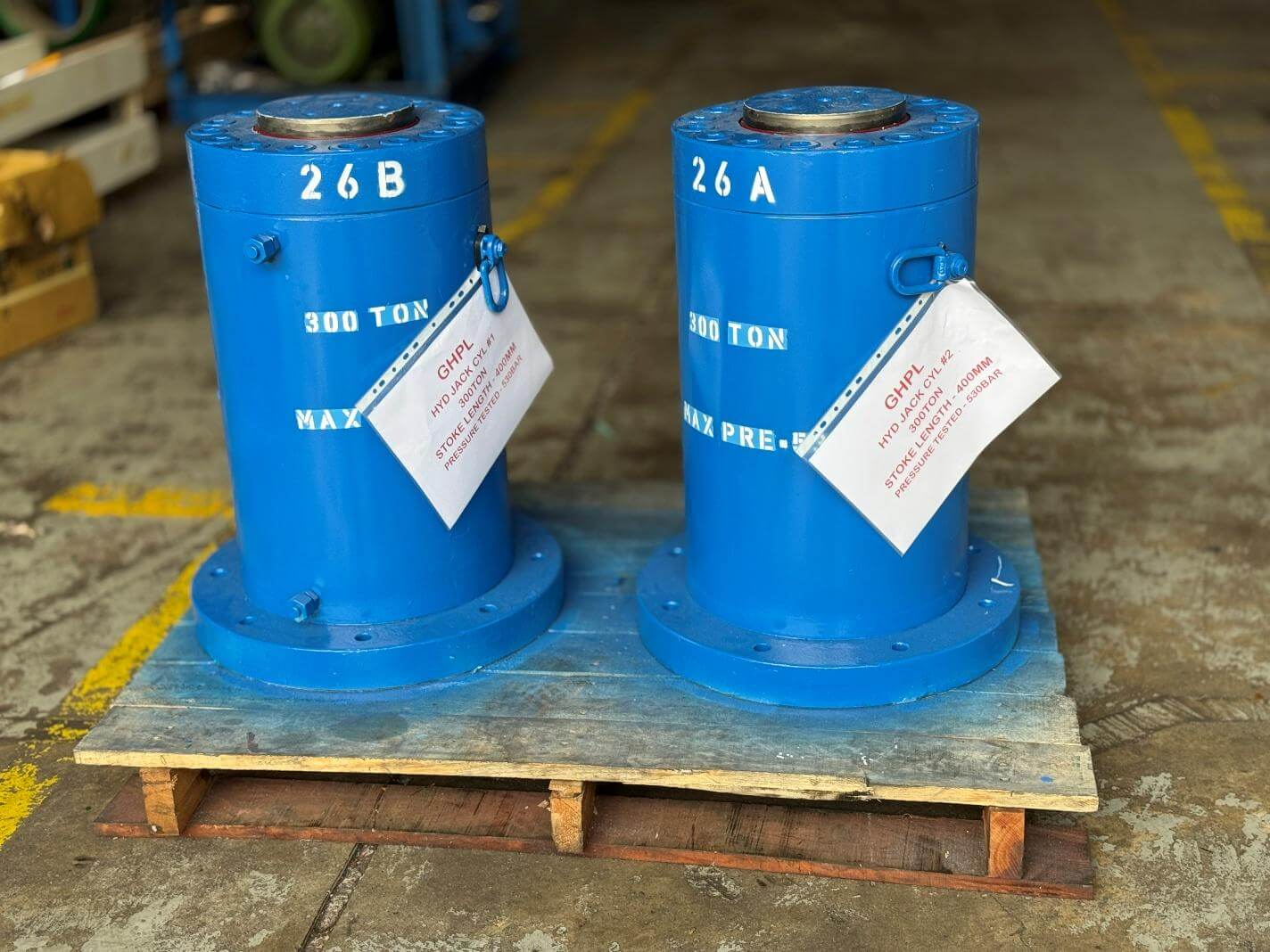

#26A & 26B
Qty: 2
Cylinder Type: Solid
Tonnage: 300 Ton
Outside Diameter: 380 mm
Cylinder Type: Solid
Tonnage: 300 Ton
Outside Diameter: 380 mm
Plunger/Rod Diameter: 200 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: Push –, Pull —
Collapsed Height: 705 mm
Stroke Length: 400 mm
Max Pressure: 530 Bar
Make & Model: GHPL
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: Push –, Pull —
Collapsed Height: 705 mm
Stroke Length: 400 mm
Max Pressure: 530 Bar
Make & Model: GHPL

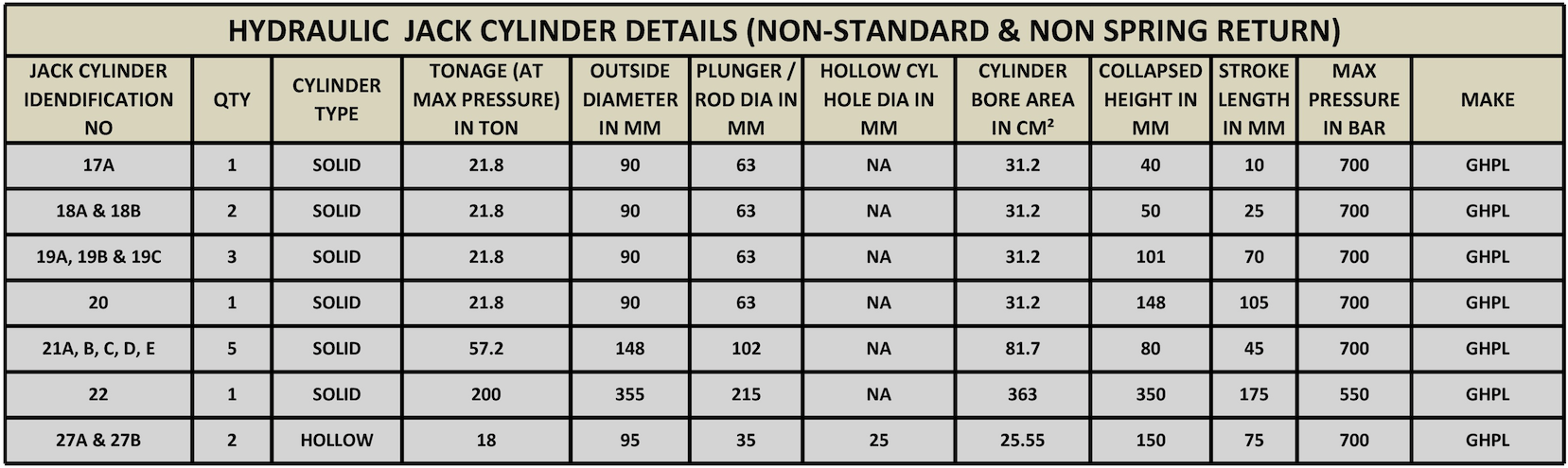

Hydraulic Jack Cylinder Details
(Non-Standard & Non Spring Return)

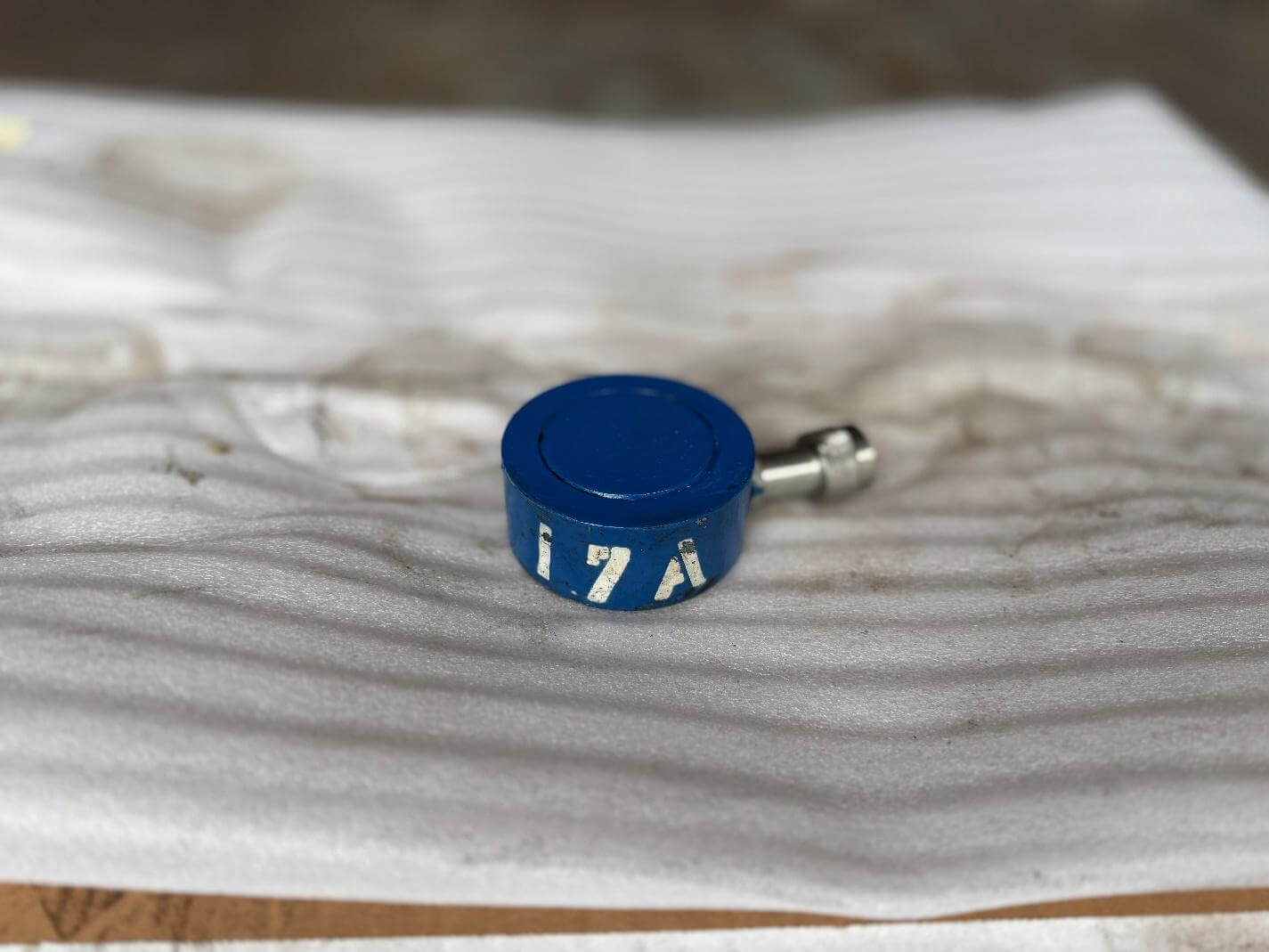

#17A
Qty: 1
Cylinder Type: Solid
Tonnage: 21.8 Ton
Outside Diameter: 90 mm
Cylinder Type: Solid
Tonnage: 21.8 Ton
Outside Diameter: 90 mm
Plunger/Rod Diameter: 63 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 31.2 cm²
Collapsed Height: 40 mm
Stroke Length: 10 mm
Max Pressure: 700 Bar
Make & Model: GHPL
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 31.2 cm²
Collapsed Height: 40 mm
Stroke Length: 10 mm
Max Pressure: 700 Bar
Make & Model: GHPL

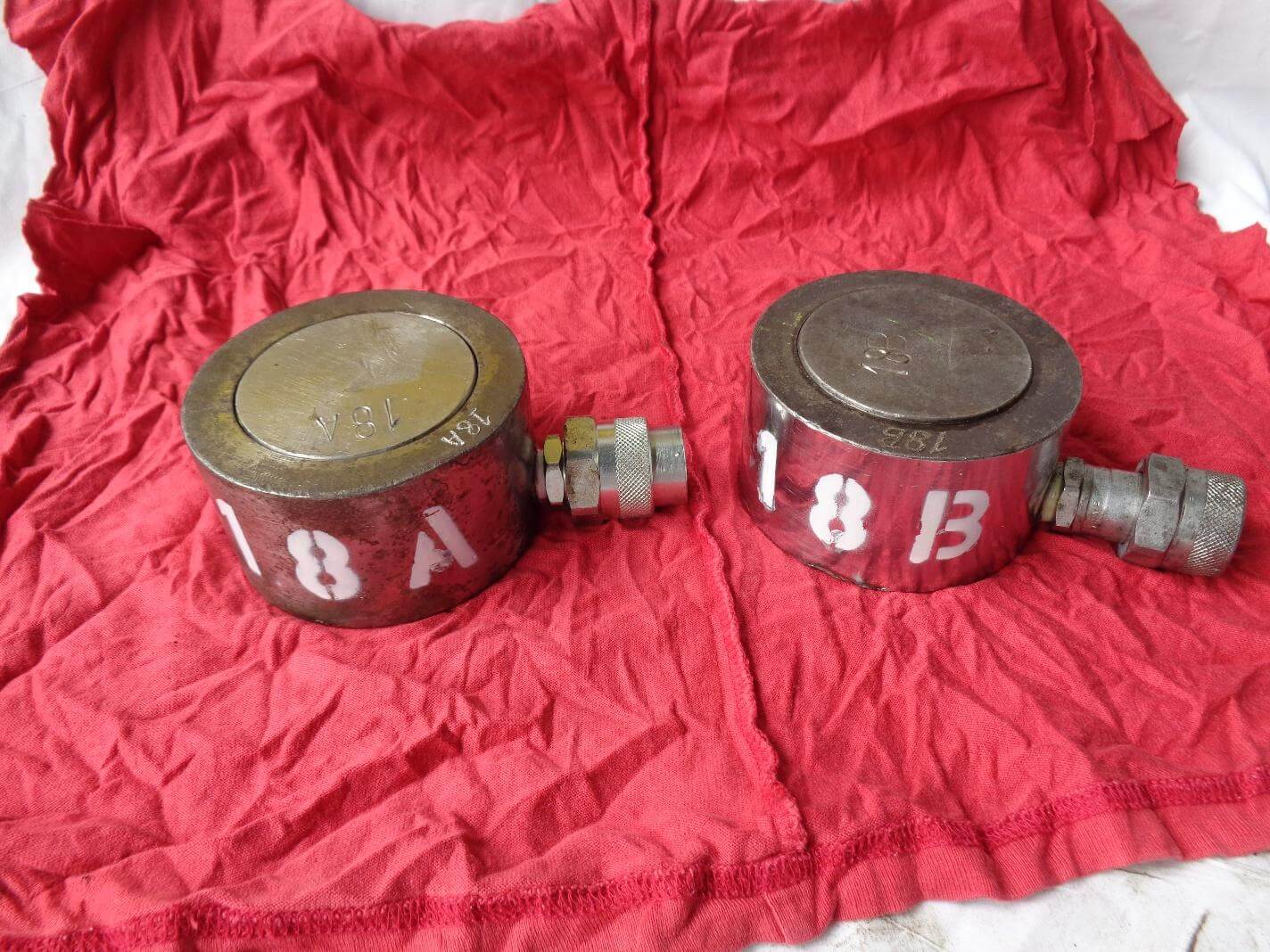

#18A & 18B
Qty: 2
Cylinder Type: Solid
Tonnage: 21.8 Ton
Outside Diameter: 90 mm
Cylinder Type: Solid
Tonnage: 21.8 Ton
Outside Diameter: 90 mm
Plunger/Rod Diameter: 63 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 31.2 cm²
Collapsed Height: 50 mm
Stroke Length: 25 mm
Max Pressure: 700 Bar
Make & Model: GHPL
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 31.2 cm²
Collapsed Height: 50 mm
Stroke Length: 25 mm
Max Pressure: 700 Bar
Make & Model: GHPL

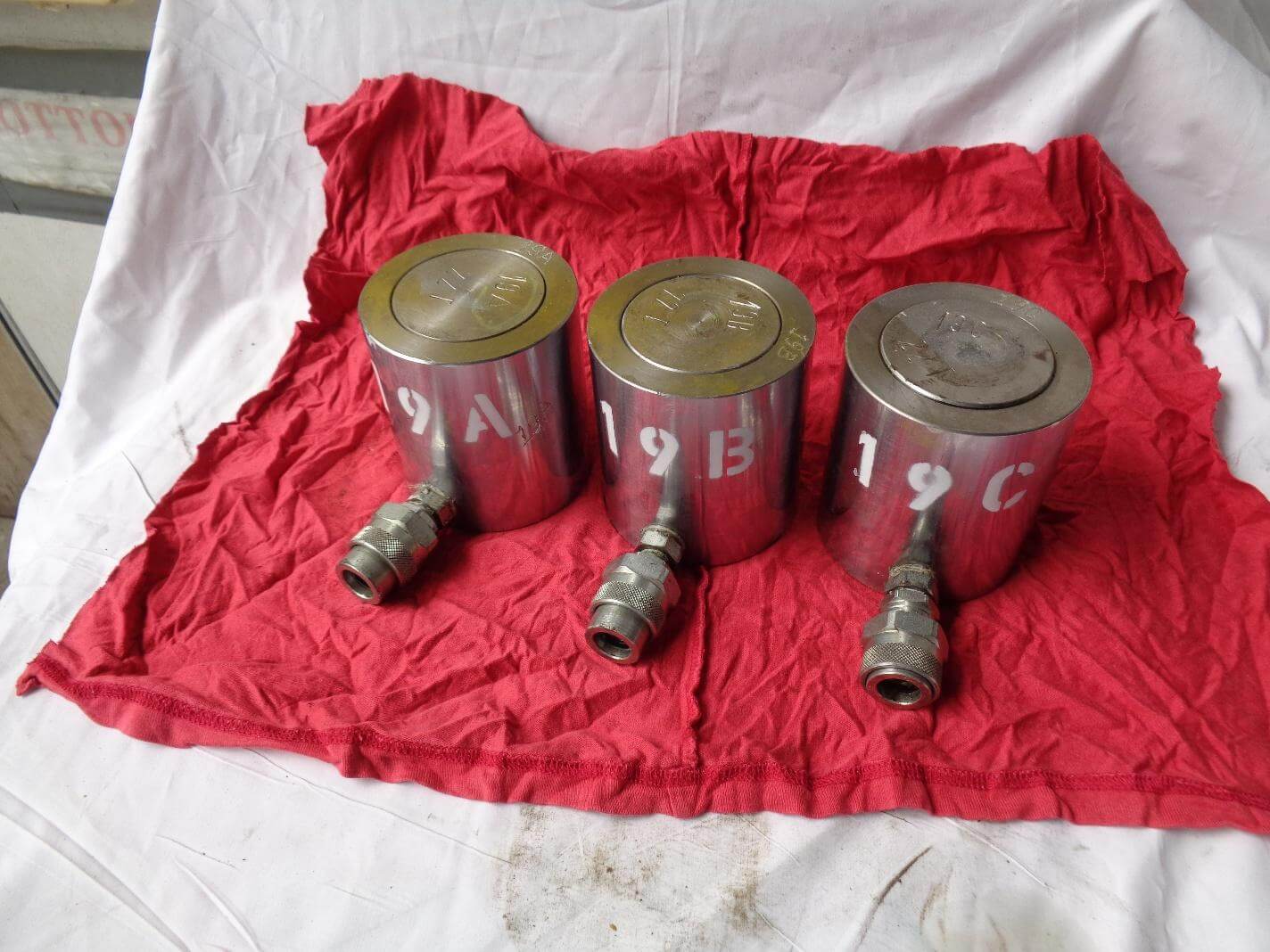

#19A, 19B & 19C
Qty: 3
Cylinder Type: Solid
Tonnage: 21.8 Ton
Outside Diameter: 90 mm
Cylinder Type: Solid
Tonnage: 21.8 Ton
Outside Diameter: 90 mm
Plunger/Rod Diameter: 63 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 31.2 cm²
Collapsed Height: 101 mm
Stroke Length: 70 mm
Max Pressure: 700 Bar
Make & Model: GHPL
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 31.2 cm²
Collapsed Height: 101 mm
Stroke Length: 70 mm
Max Pressure: 700 Bar
Make & Model: GHPL

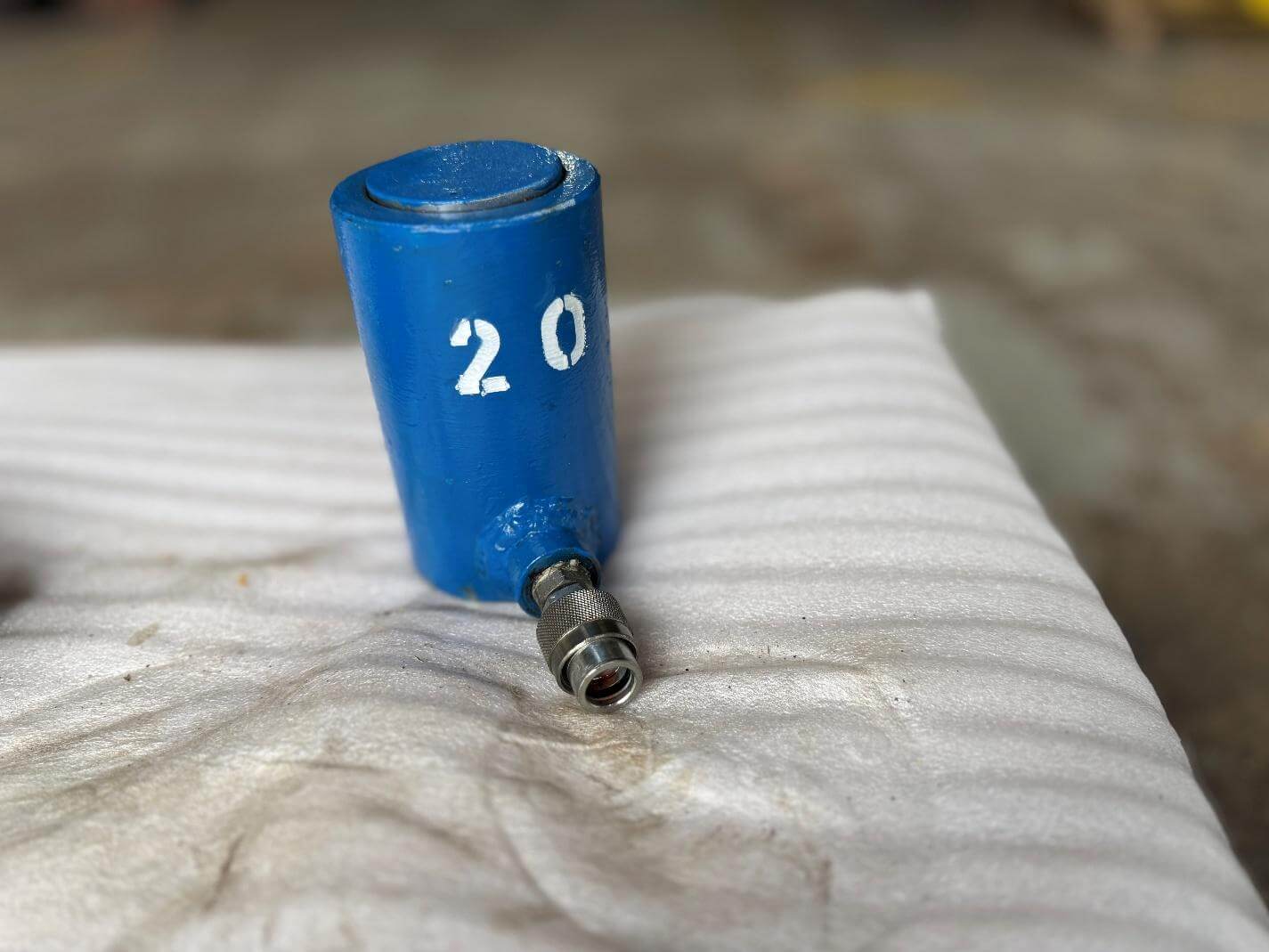

#20
Qty: 1
Cylinder Type: Solid
Tonnage: 21.8 Ton
Outside Diameter: 90 mm
Cylinder Type: Solid
Tonnage: 21.8 Ton
Outside Diameter: 90 mm
Plunger/Rod Diameter: 63 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 31.2 cm²
Collapsed Height: 148 mm
Stroke Length: 105 mm
Max Pressure: 700 Bar
Make & Model: GHPL
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 31.2 cm²
Collapsed Height: 148 mm
Stroke Length: 105 mm
Max Pressure: 700 Bar
Make & Model: GHPL

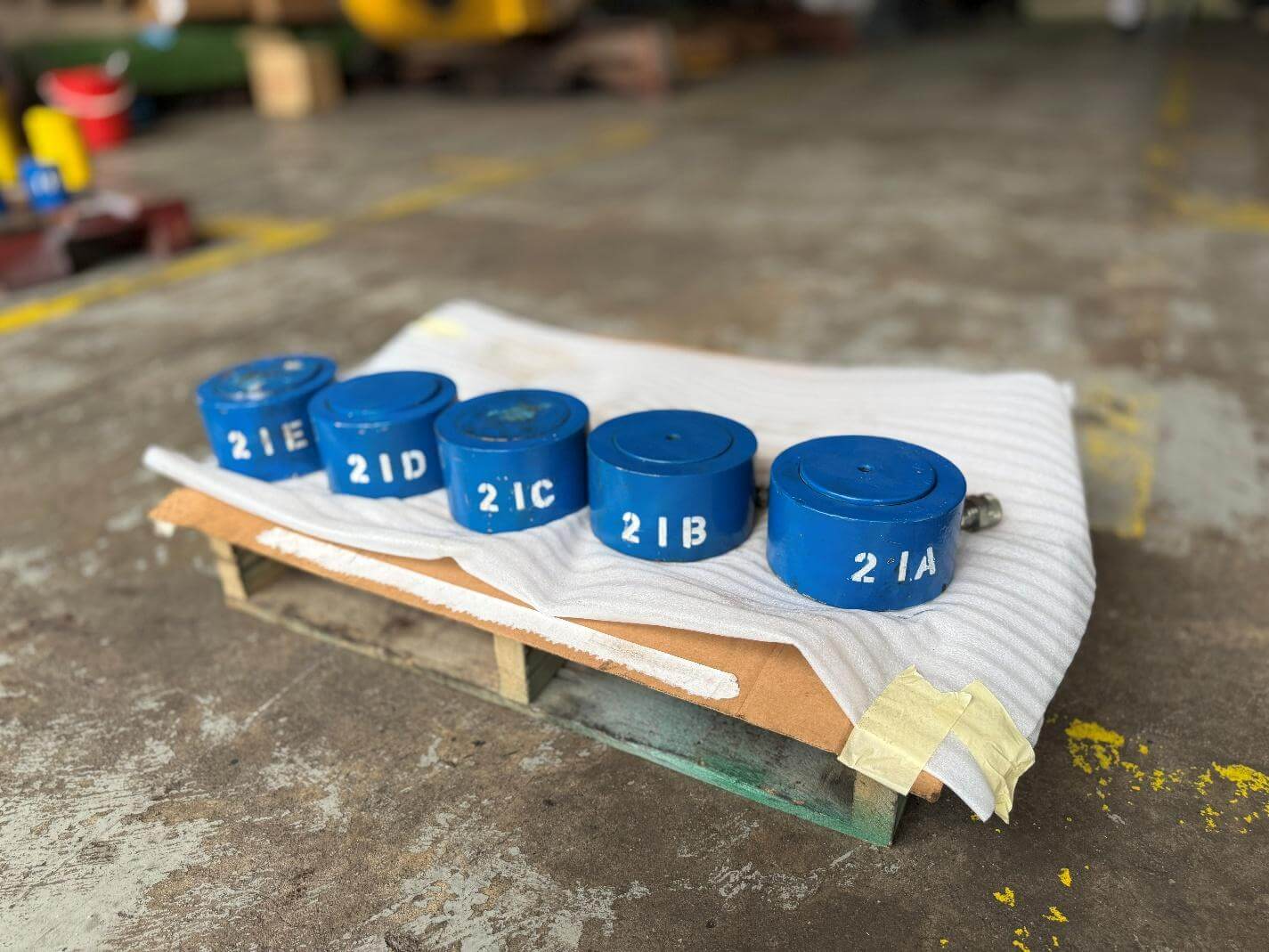

#21A, 21B, 21C, 21D & 21E
Qty: 5
Cylinder Type: Solid
Tonnage: 57.2 Ton
Outside Diameter: 148 mm
Cylinder Type: Solid
Tonnage: 57.2 Ton
Outside Diameter: 148 mm
Plunger/Rod Diameter: 102 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 81.7 cm²
Collapsed Height: 80 mm
Stroke Length: 45 mm
Max Pressure: 700 Bar
Make & Model: GHPL
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 81.7 cm²
Collapsed Height: 80 mm
Stroke Length: 45 mm
Max Pressure: 700 Bar
Make & Model: GHPL
#22
Qty: 1
Cylinder Type: Solid
Tonnage: 200 Ton
Outside Diameter: 355 mm
Cylinder Type: Solid
Tonnage: 200 Ton
Outside Diameter: 355 mm
Plunger/Rod Diameter: 215 mm
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 363 cm²
Collapsed Height: 350 mm
Stroke Length: 175 mm
Max Pressure: 550 Bar
Make & Model: GHPL
Hollow Cylinder Hole Diameter: NA
Cylinder Bore Area: 363 cm²
Collapsed Height: 350 mm
Stroke Length: 175 mm
Max Pressure: 550 Bar
Make & Model: GHPL

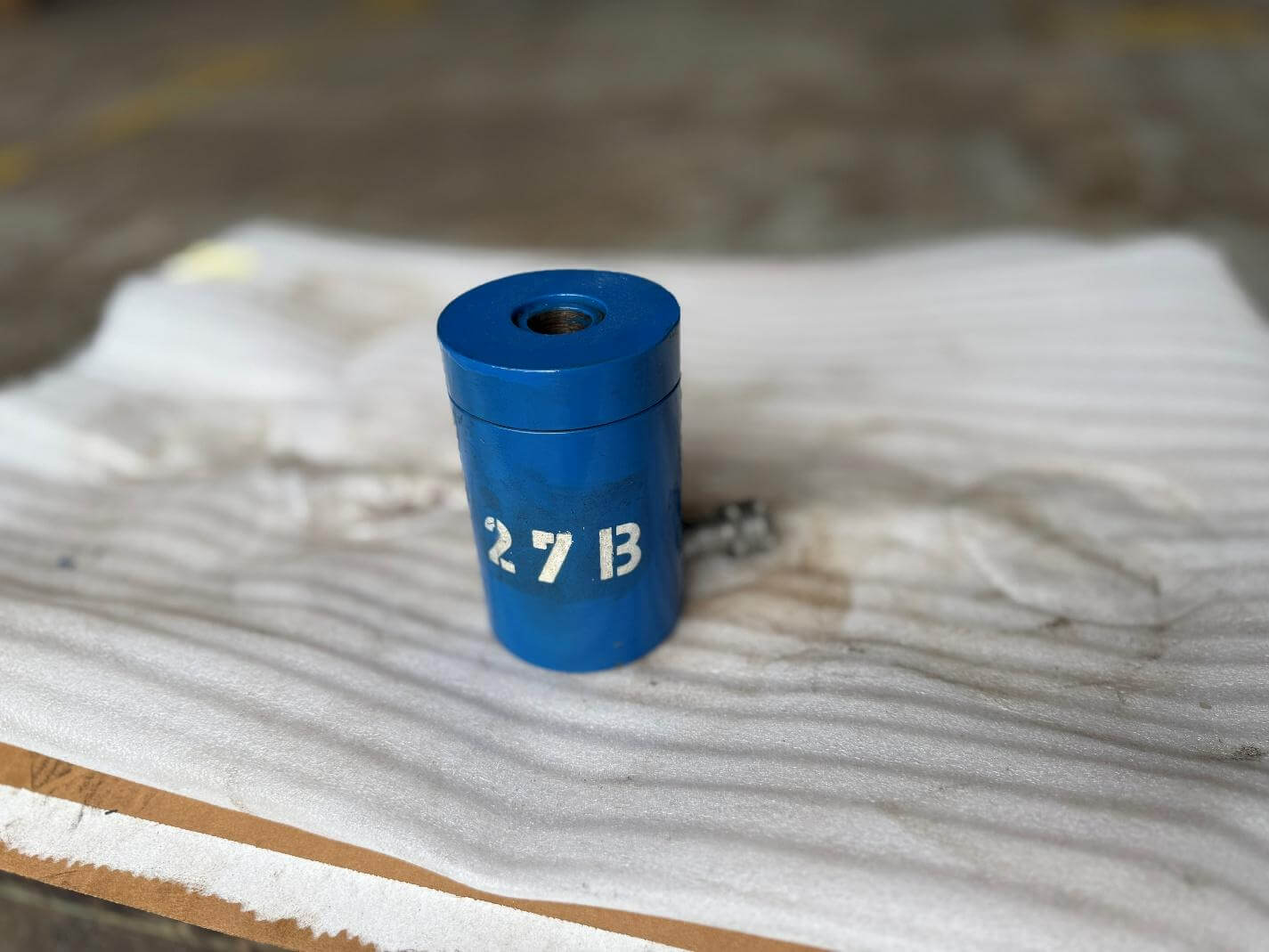

#27A & 27B
Qty: 2
Cylinder Type: Hollow
Tonnage: 18 Ton
Outside Diameter: 95 mm
Cylinder Type: Hollow
Tonnage: 18 Ton
Outside Diameter: 95 mm
Plunger/Rod Diameter: 35 mm
Hollow Cylinder Hole Diameter: 25 mm
Cylinder Bore Area: 25.55 cm²
Collapsed Height: 150 mm
Stroke Length: 75 mm
Max Pressure: 700 Bar
Make & Model: GHPL
Hollow Cylinder Hole Diameter: 25 mm
Cylinder Bore Area: 25.55 cm²
Collapsed Height: 150 mm
Stroke Length: 75 mm
Max Pressure: 700 Bar
Make & Model: GHPL
